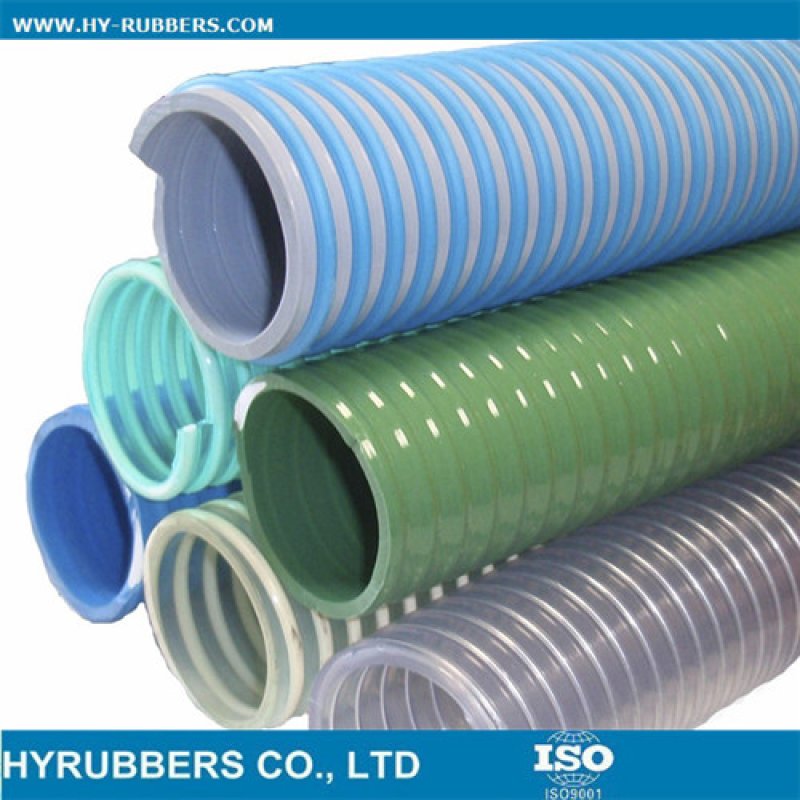

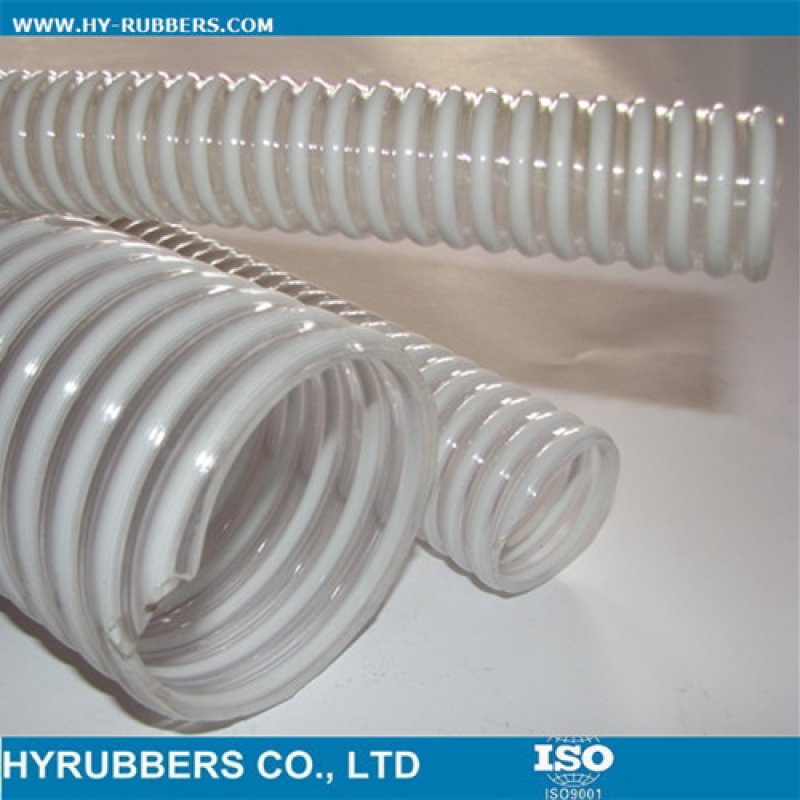

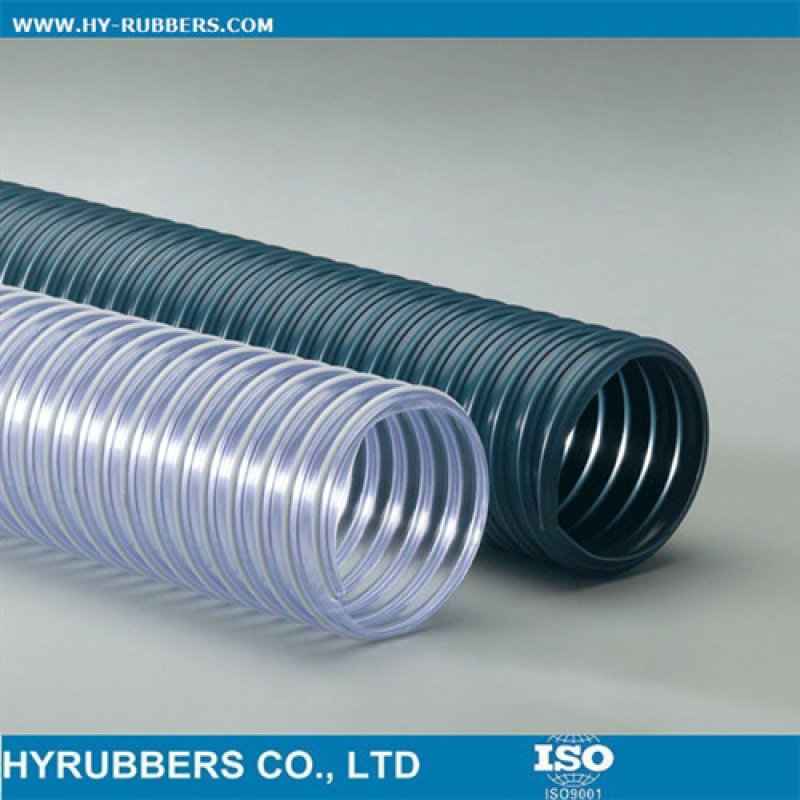

PVC helix suction hose colorful

PVC helix suction hose colorful

Product Details

PVC helix suction hose,helix suction hose,PVC suction hose

Characteristics:


Being light in weight, with good resistance to the hard weather conditions and minus pressure,
Excellent resistance to pressure,external impacts,chemical,gases,light acids and saline water.
Working Temperature: from -5℃ to +65℃
Applications:
Good substitute for rubber and metal hose in most application;Agriculture irrigation, chemical transfer, water,oil,grain and powder conveying.
and small bending radius.
British Messurement Metric Measurement W.P. B.P. Packing Cubage
    At 23℃ Measurement
Inch I.D. mm O.D. mm m/roll MPa MPa D×H   mm m3
5/8" 16 21 50 -0.1~0.4 1 600×230 0.083
3/4" 19 25 50 -0.1~0.4 1 610×160 0.6
1" 25 32 50 -0.1~0.6 2 660×200 0.087
1-1/4" 32 40 50 -0.1~0.7 2.1 320×780 0.08
1-1/2" 38 46 20  -0.10.6 1.8 730×240 0.128
2" 51 60 20 -0.1~0.6 1.8 900×320 0.26
2-1/2" 64 73 20 -0.1~0.5 1.5 820×300 0.202
3" 76 86 20 -0.1~0.4 1.2 910×350 0.29
4" 102 113 20 -0.1~0.3 1 1100×450 0.544
5" 127 139 20 -0.1~0.3 1 1250×600 0.94
6" 152 166 20 -0.1~0.3 1 1400×680 1.33
Company Information

   About  Us

  • 17+ years experience in rubber hose industry.
  • Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
  • Located in Qingdao,China, closed with the seaport
  • 32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
  • Outstanding R&D engineers team.
  • OEM available.
  • Consistent and well trained team.
  • Experienced sales team for different markets.
  • ISO9001 approved production process.



1) Since 1999, 17years experience produce the welding hose
2) We are factory with good quality and cheap price
3) Delivery time :10~20 days after prepayment

4) Strict quality testing

5) 7X24 hours service





Size ID W.P. Size of soft joint Length
6 BAR 10 BAR Length Tolerance m Tolerance
mm Min Max Layers mm mm
