Low pressure oil fuel rubber hose,oil fuel rubber hose,low pressure hose
Rubber fuel hose technical data:
Application: For the transportation of hydraulic oil,lubrication oil, fuel oil.
Material: inner tube is made of SBR or NBR; or SBR&NBR blend; outer cover is made of SBR or NBR; or SBR&NBR blend
|
Item |
Size |
Length |
Weight |
||
|
mm |
inch |
I.D. (mm) |
O.D. (mm) |
m/roll |
Kg/m |
|
6 |
1/4" |
6.3+-0.3 |
15.5+-0.3 |
50 |
0.150 |
|
8 |
5/16" |
7.9+-0.3 |
17.5+-0.3 |
50 |
0.170 |
|
10 |
3/8" |
9.5+-0.3 |
20+-0.3 |
50 |
0.200 |
|
13 |
1/2" |
12.7+-0.3 |
23.5+-0.3 |
50 |
0.270 |
|
16 |
5/8" |
15.8+-0.3 |
27.5+-0.3 |
50 |
0.310 |
|
19 |
3/4" |
19+-0.3 |
29.7+-0.3 |
50 |
0.650 |
|
25 |
1" |
25.4+-0.3 |
37.5+-0.3 |
50 |
0.850 |
|
32 |
1-1/4" |
31.8+-0.3 |
44.5+-0.3 |
50 |
1.200 |
|
38 |
1-1/2" |
38.1+-0.3 |
50.5+-0.3 |
50 |
1.320 |
|
51 |
2" |
50.8+-0.3 |
65.5+-0.3 |
50 |
2.000 |

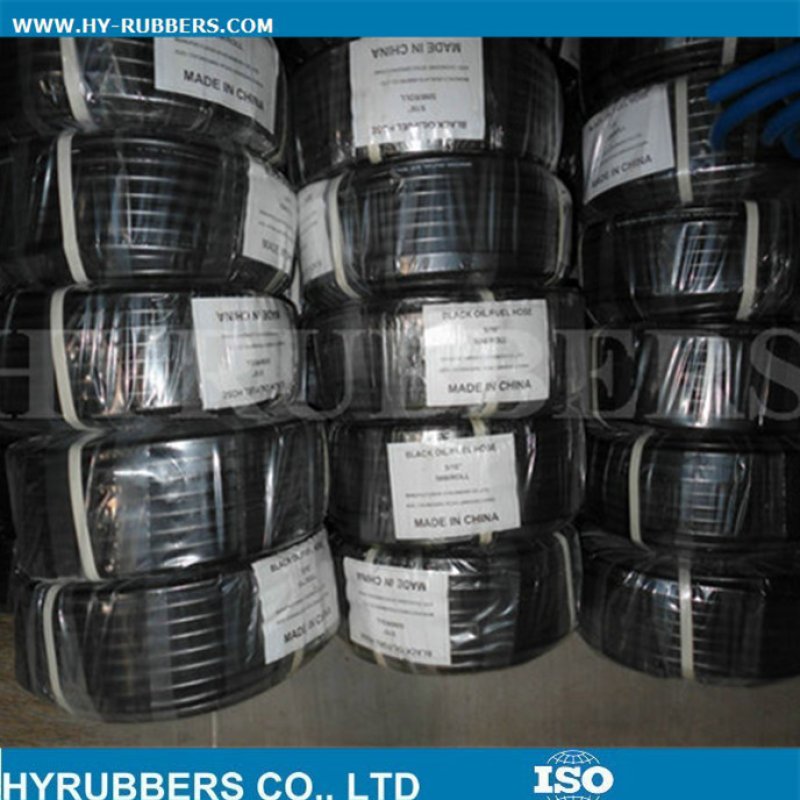

We packed the rubber fuel hose with woven bag, suitable for long distance transport
Rubber fuel hose packing details:
