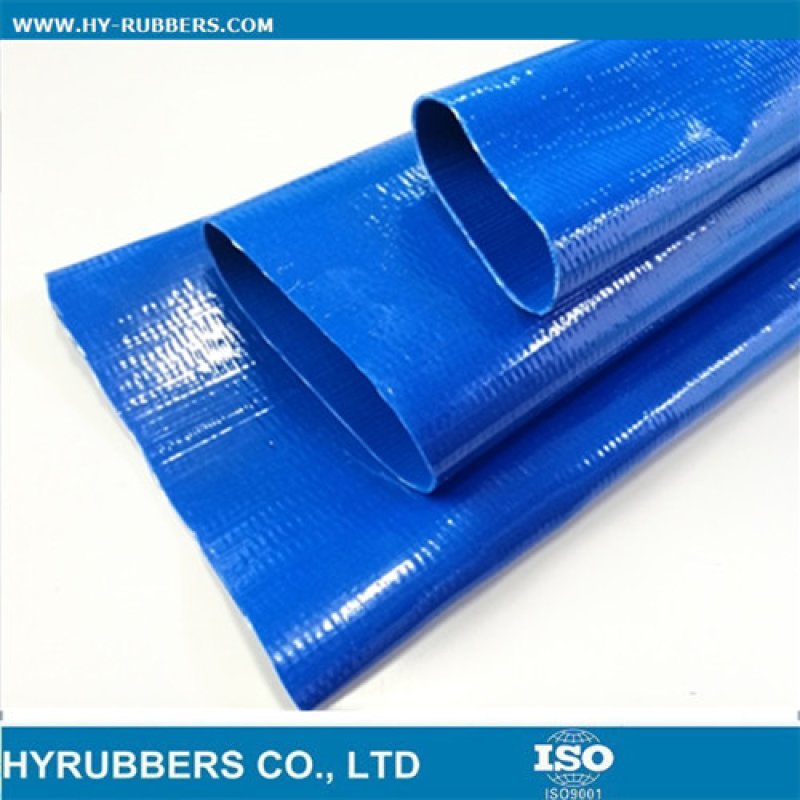

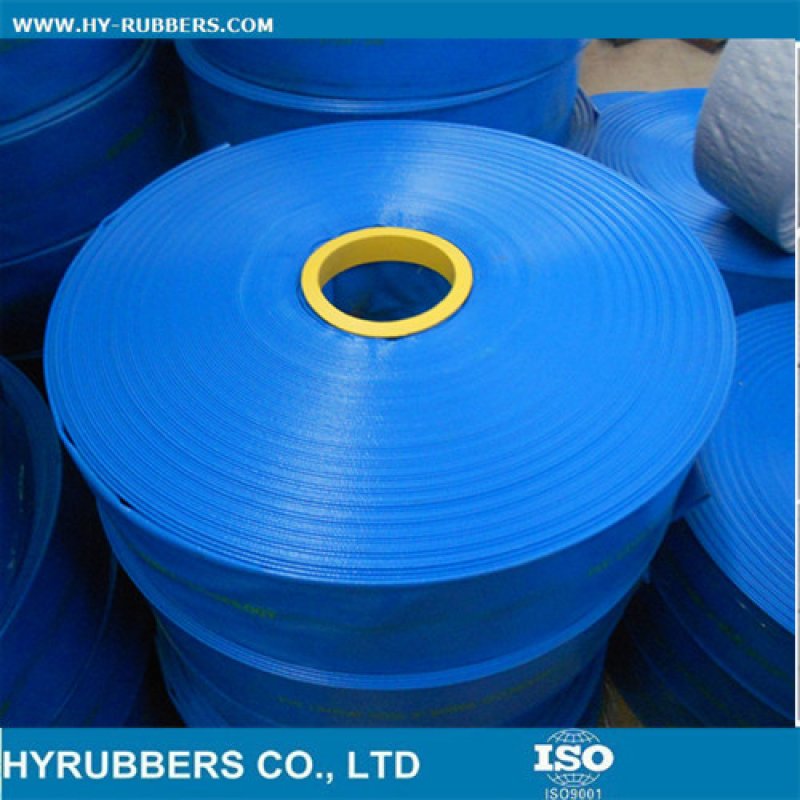

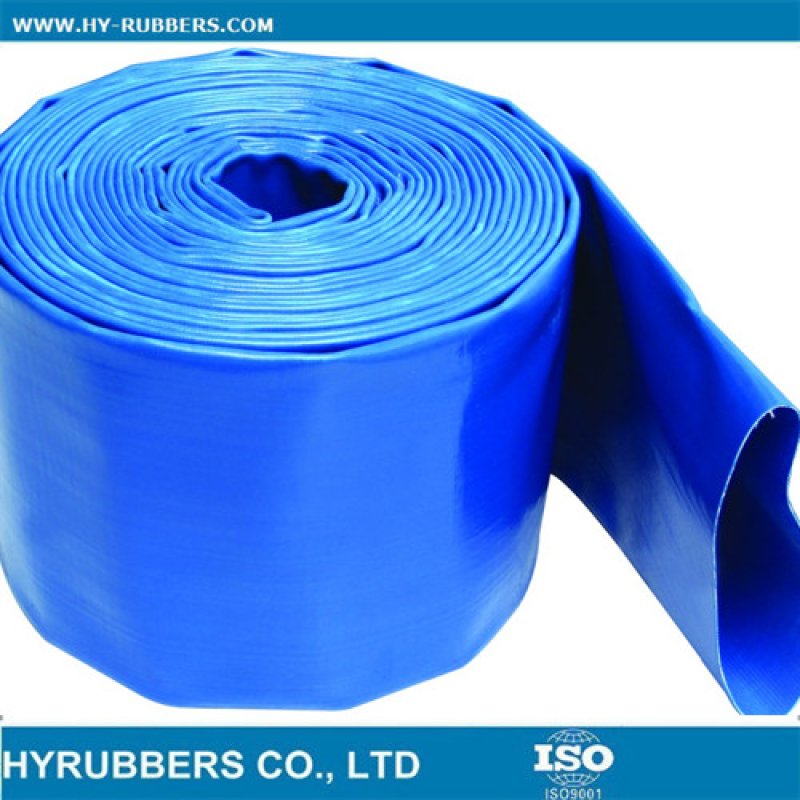

PVC layflat hose, pvc layflat hose for irrigation,irrigation hose
|
APPLICATIONS:It is an ideal product used for driainage in the fields of agriculture irrigation, |
||
|
forestry sprinkler irrigationm, construction project, industrial and mining enterprise. |
||
| CHARACTERISTICS:Choosing high strength polyester filament and high quality PVC, it is successively | ||
| winded, parted the threads regularly and molded by plastic coated once. With an attractive | ||
| appearance, soft surface and light weight, high burst pressure and long service life, the product | ||
| is acid & alkali resistant, aging resistant, stretching resistant, anti-wrinkle, non-toxic, | ||
|
flavorless and enviromental protection. |
||
| WORKING TEMPERATURE :-5℃～65℃ |
| Size | 2bar | 3bar | 4bar | 6bar | 8bar | 10bar | |
| Inch | mm | Kg/m | Kg/m | Kg/m | Kg/m | Kg/m | Kg/m |
| 1" | 25.4±1.3 | 0.12 | 0.13 | 0.14 | 0.155 | 0.17 | 0.185 |
| 1-1/4" | 31.8±1.3 | 0.14 | 0.15 | 0.175 | 0.195 | 0.21 | 0.23 |
| 1-1/2" | 38.1±1.5 | 0.18 | 0.2 | 0.24 | 0.27 | 0.3 | 0.32 |
| 2" | 50.3±2.0 | 0.24 | 0.3 | 0.35 | 0.375 | 0.39 | 0.42 |
| 2-1/2" | 63.5±2.3 | 0.32 | 0.38 | 0.45 | 0.48 | 0.52 | 0.55 |
| 3" | 76.2±2.3 | 0.38 | 0.47 | 0.57 | 0.63 | 0.69 | |
| 4" | 101.6±2.5 | 0.52 | 0.58 | 0.72 | 0.8 | 0.9 | |
| 5" | 121.0±2.8 | 0.75 | 0.85 | 0.95 | 1.1 | 1.2 | |
| 6" | 152.4±3.0 | 0.9 | 1.05 | 1.2 | 1.4 | 2.1 | |
| 8" | 203.2±3.5 | 1.45 | 1.55 | 1.7 | 1.9 | 2.6 | |
| 10" | 254.0±4.0 | 2.3 | 2.5 | 2.75 | |||
| 12" | 304.8±4.5 | 3 | 3.6 | 4 | |||
About Us
1) Since 1999, 17years experience produce the welding hose
2) We are factory with good quality and cheap price
3) Delivery time :10~20 days after prepayment
4) Strict quality testing
5) 7X24 hours service
| Size | ID | W.P. | Size of soft joint | Length | ||||
| 6 BAR | 10 BAR | Length | Tolerance | m | Tolerance | |||
| mm | Min | Max | Layers | mm |
mm |
|||
