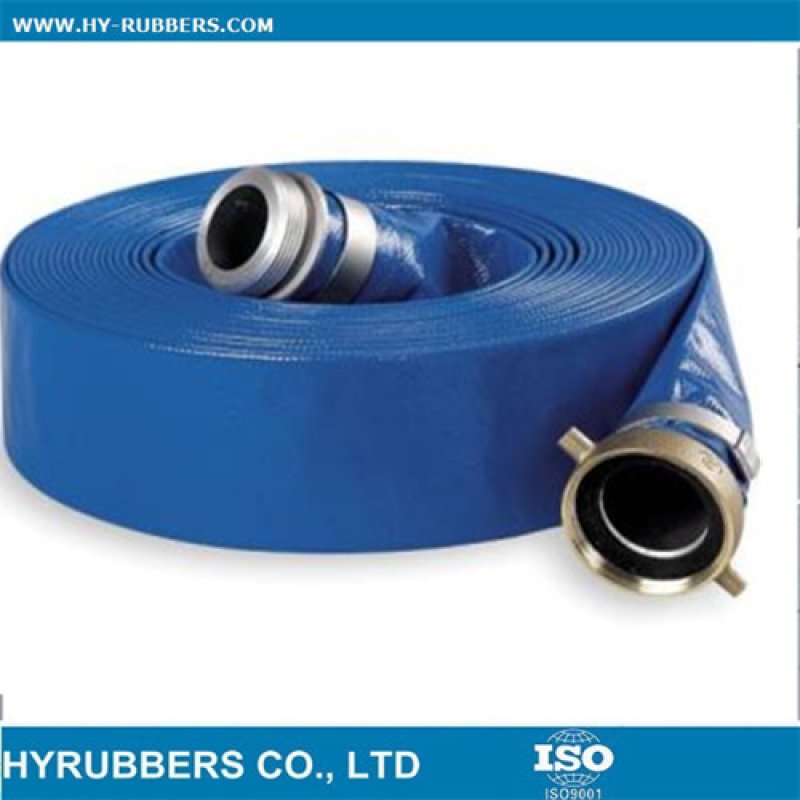

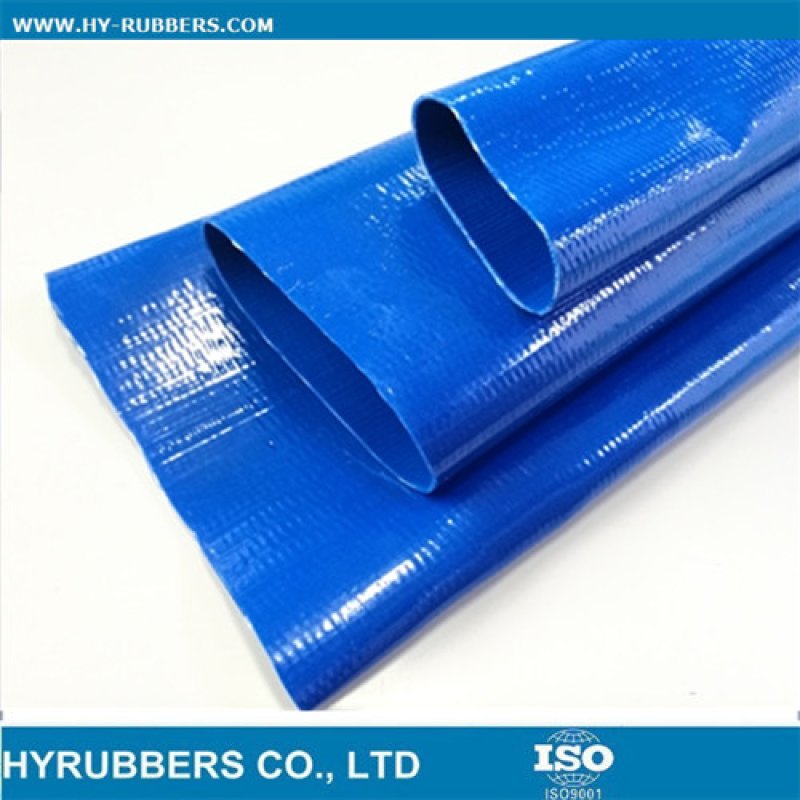

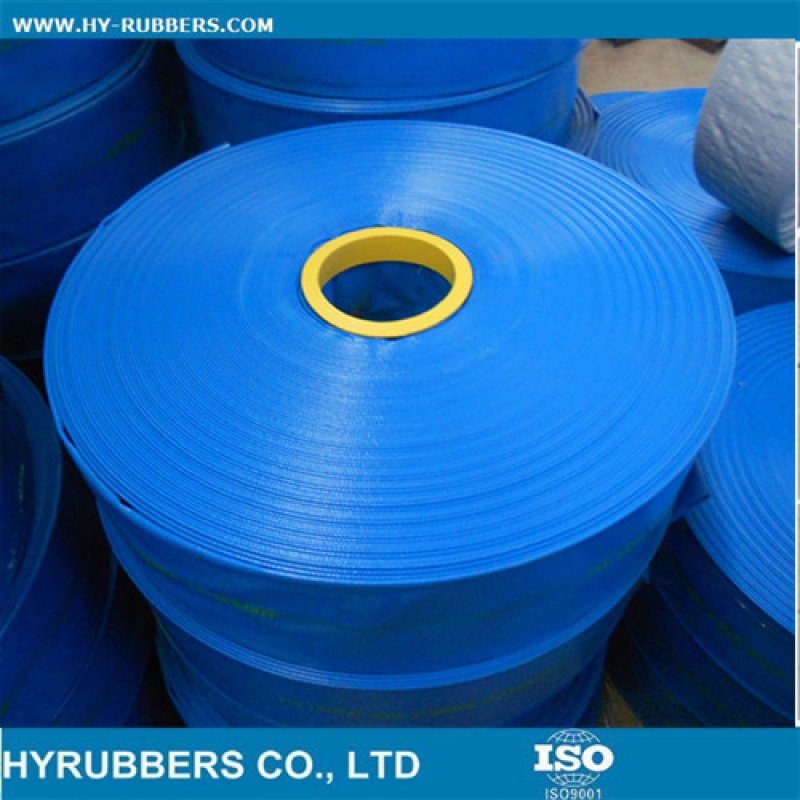

PVC special high-strength layflat hose

PVC special high-strength layflat hose

Product Details

PVC  layflat hose, layflat hose,pvc hose

APPLICATIONS:It is an ideal product used for driainage in the fields of agriculture irrigation,


forestry sprinkler irrigationm, construction project, industrial and mining enterprise.


CHARACTERISTICS:Choosing high strength polyester filament and high quality PVC, it is successively
 winded, parted the threads regularly and molded by plastic coated once. With an attractive
appearance, soft surface and light weight, high burst pressure and long service life, the product
 is acid & alkali resistant, aging resistant, stretching resistant, anti-wrinkle, non-toxic,
flavorless and enviromental protection.


WORKING TEMPERATURE :-5℃~65℃
Size 2bar 3bar 4bar  6bar  8bar  10bar
Inch  mm Kg/m Kg/m Kg/m Kg/m Kg/m Kg/m
1" 25.4±1.3 0.12 0.13 0.14 0.155 0.17 0.185
1-1/4" 31.8±1.3 0.14 0.15 0.175 0.195 0.21 0.23
1-1/2" 38.1±1.5 0.18 0.2 0.24 0.27 0.3 0.32
2" 50.3±2.0 0.24 0.3 0.35 0.375 0.39 0.42
2-1/2" 63.5±2.3 0.32 0.38 0.45 0.48 0.52 0.55
3" 76.2±2.3 0.38 0.47 0.57 0.63 0.69
4" 101.6±2.5 0.52 0.58 0.72 0.8 0.9
5" 121.0±2.8 0.75 0.85 0.95 1.1 1.2
6" 152.4±3.0 0.9 1.05 1.2 1.4 2.1
8" 203.2±3.5 1.45 1.55 1.7 1.9 2.6
10" 254.0±4.0 2.3 2.5 2.75
12" 304.8±4.5 3 3.6 4
Company Information

   About  Us

  • 17+ years experience in rubber hose industry.
  • Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
  • Located in Qingdao,China, closed with the seaport
  • 32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
  • Outstanding R&D engineers team.
  • OEM available.
  • Consistent and well trained team.
  • Experienced sales team for different markets.
  • ISO9001 approved production process.



1) Since 1999, 17years experience produce the welding hose
2) We are factory with good quality and cheap price
3) Delivery time :10~20 days after prepayment

4) Strict quality testing

5) 7X24 hours service





Size ID W.P. Size of soft joint Length
6 BAR 10 BAR Length Tolerance m Tolerance
mm Min Max Layers mm mm
