Usage: Flame resistant conveyor belt is suitable for conveying various non-corrosive and thornless materials.
It is better for conveying materials in blocks, in grains, or in powder, such as coal in bulk or in bales, in the easily burned or easily explosive environment above coal mine wells.
Cover Type |
Standards |
Min MPA |
Min Elongation % |
Abrasion |
Material Conveyed |
Fire Resistant |
SANS-F |
17 |
350 |
180 |
Material with fire hazards, e.g. Coal |
IS-1891(FR Grade) |
17 |
350 |
200 |
||
ISO-340(FR Grade) |
17 |
350 |
180 |
||
AS-F(FR Grade) |
14 |
350 |
200 |
||
AS-1332(FR Grade) |
14 |
350 |
200 |
||
DIN S Grade |
17 |
350 |
180 |
||
DIN k Grade |
17 |
350 |
200 |
||
MSKA-FR |
17 |
350 |
200 |
||
CAN/CSA (FR Grade) |
17 |
350 |
200 |
Accordance with different applications, we can produce different grades of belt as following:
1) Heat Resistant Belt
According to the temperature of working environments, we can manufacture 3 different grades heating resistant belt, including up to 120℃ grade (HR120), up to 150℃ grade (HR150), up to 180℃ grade (HR180) and up to 200℃ grade (HR200) .Generally used by cements and steel works.
2) Abrasion Resistant (≤90mm3) / super abrasion resistant (≤60mm3) Belt
Generally used for transport the hard or shaped materials, like iron ore, diamond, copper and other minerals.
3) Oil Resistant Belt
Generally used for wood, papermaking, oil-based grain transportation.
4) Acid/Alkali Resistant Belt
Always used in Chemical materials transportation.
5) Cold Resistant Belt
The belt can work in some cold environment, like Northeast of China, Russia and North European countries.
6) Fire Resistant Belt
Always used in underground coal mining, steel works and so on.
7) conventional Belt
Generally used for small powder, grain and block materials.
We have full sets of test equipments to finish heat test, flame test, cold test, ozone test, tensile strength, adhesion strength etc. And the professional test report could be shared with you.

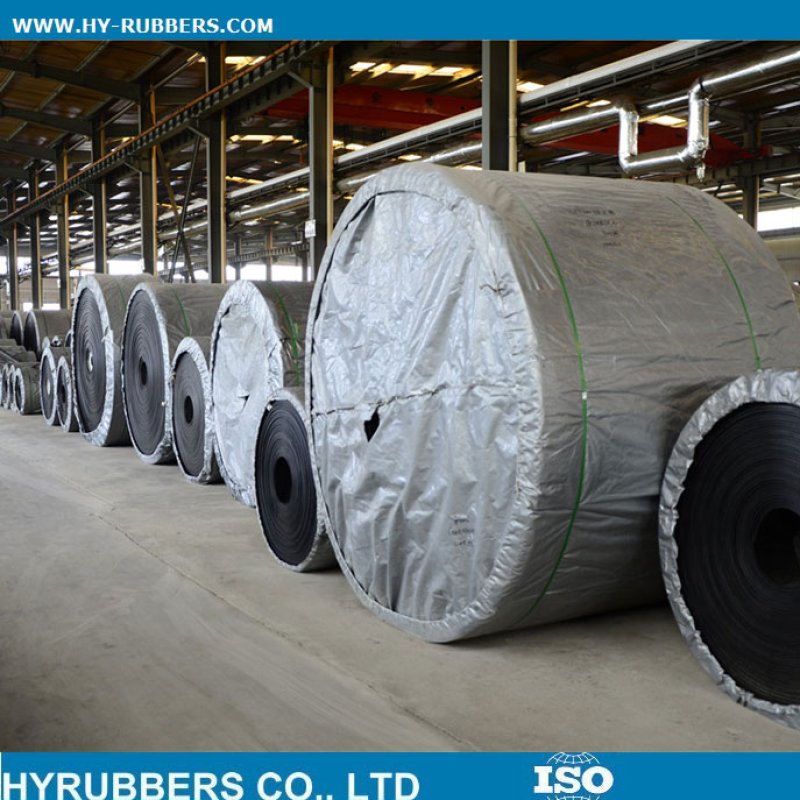

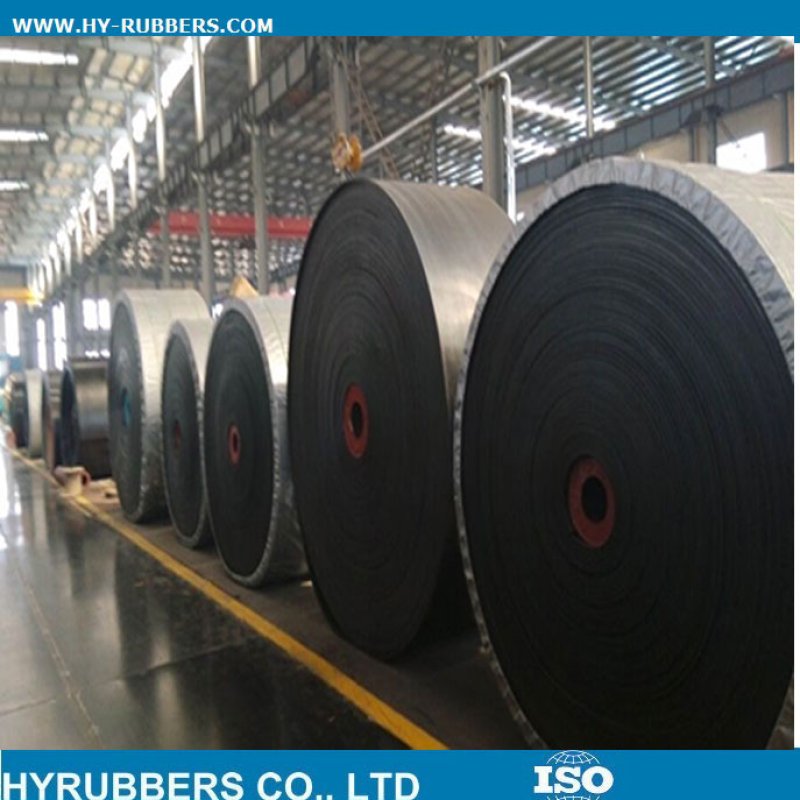

The length per roll could be 250m or 300m as your request. And the max width could be 2000mm.
Certificates: ISO9001, mining safety certificate could guarantee our quality.
Why you choose us?
1.Super high quality.
2.Competitive price.
3.Good producing equipment and technology.
4.Large production ability.
5.Prompt delivery.
6.Small order accepted.
7.Excelent sale and after-sale service.
8.OEM available.
Is the product sample available?
Yes,all product samples are available for you to test the quality.
Is OEM available?
Yes,OEM is available.We have professional designer to help your brand promotion.
Are the products tested before shipping?
Yes,all of our products were qualified before leave the factory,we test every batch every day.
Delivery details?
Within 10-20 days in general or depends on quality of the order.
Packaging details?
Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.
What's the quality guarantee?
We have totally quality guarantee to customers,we will be responsible for any quality problems.
