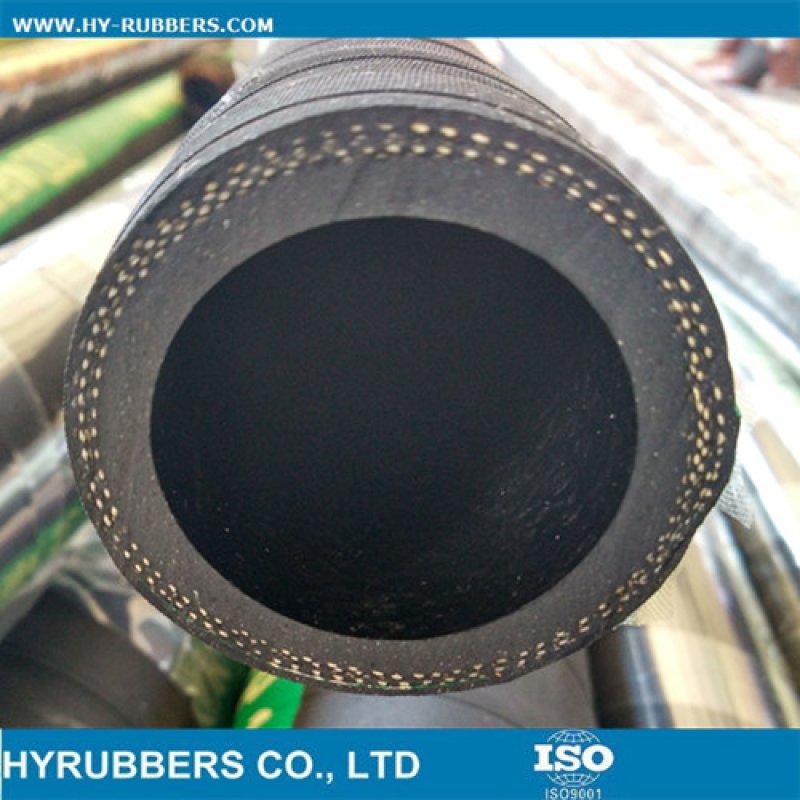

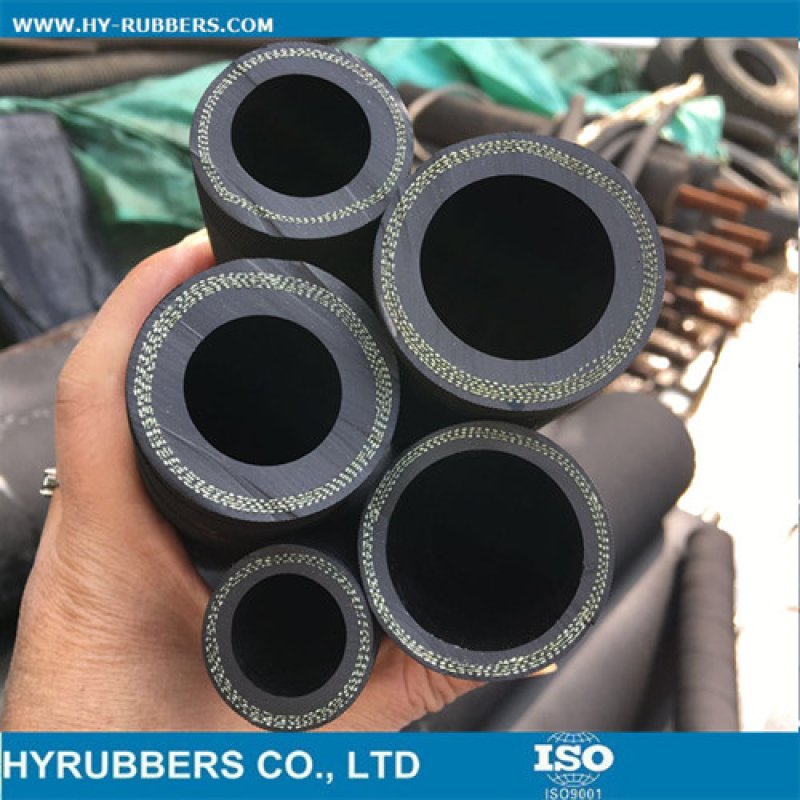

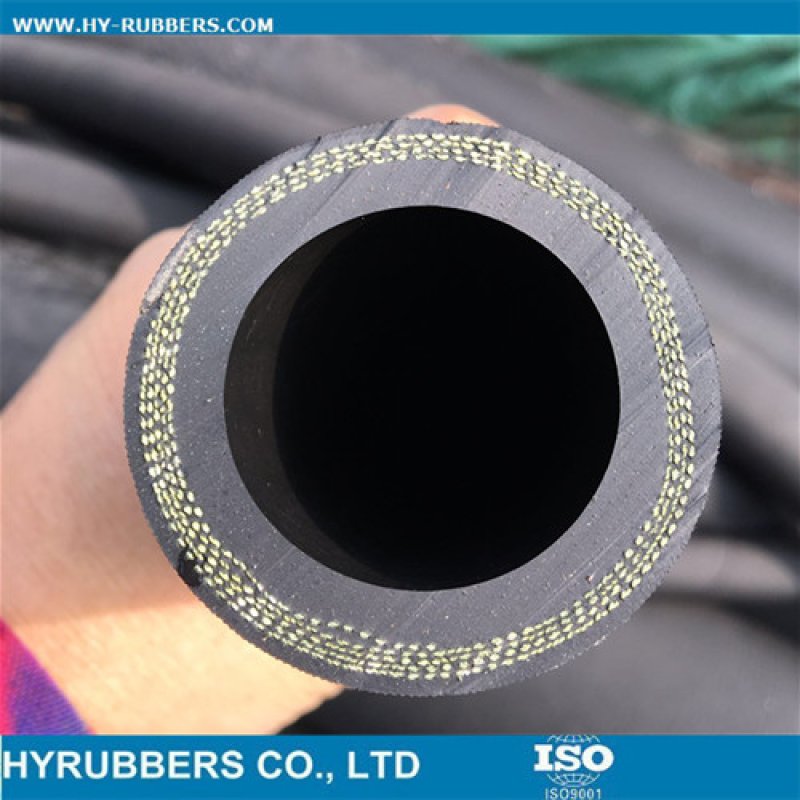

Hot Water Hose, Water Hose,hot water rubber hose
Russia Standard : ГОСТ 18698-79 --- ВГ(III)
Applications :
Length is up to 20m for hoses with inside diameter from 16 to 50 mm and 6m for hoses with inside diameter of 160mm
GOST 18698-79 are used as flexible pipelines for delivering of liquids, saturated steam, gases and dry materials under pressure
Temperature range : To +100 ℃…
|
Диаметр(внутр.), мм |
Диамет(наружн.) мм |
Давление,МПа | Класс | Длина, м | |||||
| ID мм | OD(mm) |
Pressure Mpa |
Type | Length (m) | |||||
| 16 | 30 | 1.0 | ВГ | 20 | |||||
| 18 | 32 | 1.0 | ВГ | 20 | |||||
| 20 | 33 | 1.0 | ВГ | 20 | |||||
| 25 | 40 | 1.0 | ВГ | 20 | |||||
| 32 | 49 | 1.0 | ВГ | 10; 20 | |||||
| 38 | 54 | 1.0 | ВГ | 10; 20 | |||||
| 50 | 68 | 1.0 | ВГ | 10; 20 |
