Carcass Rubber Conveyor Belt exported to Australia

Carcass Rubber Conveyor Belt exported to Australia

Product Details

Carcass Rubber Conveyor Belt exported to Australia

HYRUBBERS CO.,LTD is specializing In manufacturing, exporting and developing conveyor belt, in the same time rubber sheet, rubber tiles and so on.

The factory founded has 260 people including 220 workers, and 15 engineers and technicians, 25international sales workers, covering an area of 50000 m2, owing 220 sets of main production equipment.

The ISO9001: 2000 certified factory has established a stable and reliable quality control system with a modem management.



Types:



Accordance with different carcass used in fabric belt, we can supply CC belt,Nylon belt, EP belt.



CC Conveyor belt available for the materials handling of medium distance.

NN conveyor belt has the advantage of flexible, high tension, impact resistant characteristics, available for the conveying materials of medium distance.



EP conveyor belt has the advantage of low elongation, excellent heat resistant, impact resistant, available for the materials handing of heavy duty, high speed and medium distance.




Belt Type

Fabric Type

Single Fabric Strength(N/mm)

Top Cover
Bottom Cover(mm)

Ply

Width Range(mm)

Length (m)Roll

Cotton Canvas Belt

CC-56

56

1.5+1.5




3.0+1.5

4.0+2.0

4.5+1.5

4.5+3.0

6.0+1.5

 6.0+3.0

3-12

300-1800

200

NN Belt

NN-100

100


2-10


300-1800


20-300

NN-150

150

NN-200

200

NN-250

250

NN-300

300

NN-400

400

EP Belt

EP-100

100


2-8


300-1800


20-300

EP-150

150

EP-200

200

EP-250

250

EP-300

300

EP-350

350

EP-400

400

Types of Muti-ply Fabric Conveyor Belt


Type

Feature and application

Conventional

Generally used for powder, grain block material

Oil/fat Resistant

Oil, fat material

Acid-alkali resistant

            PH4-10

Heat resistant

T1≤100℃ T2≤120℃ T3≤150℃

Temperature Resistant

Fire Resistant: 180-200℃

Flame Retardant

Fire Resistant: 200-600℃

Accordance with different applications, we can produce different grades of belt as following:

 1) Heat Resistant Belt

According to the temperature of working environments, we can manufacture 3 different grades heating resistant belt, including up to 120 grade (HR120), up to 150 grade (HR150), up to 180 grade (HR180) and up to 200 grade (HR200) .Generally used by cements and steel works.

2) Abrasion Resistant (90mm3) / super abrasion resistant (60mm3) Belt

Generally used for transport the hard or shaped materials, like iron ore, diamond, copper and other minerals.

3) Oil Resistant Belt

Generally used for wood, papermaking, oil-based grain transportation.

4) Acid/Alkali Resistant Belt

Always used in Chemical materials transportation.

5) Cold Resistant Belt

The belt can work in some cold environment, like Northeast of China, Russia and North European countries.

6) Fire Resistant Belt

Always used in underground coal mining, steel works and so on.

7) conventional Belt

Generally used for small powder, grain and block materials.

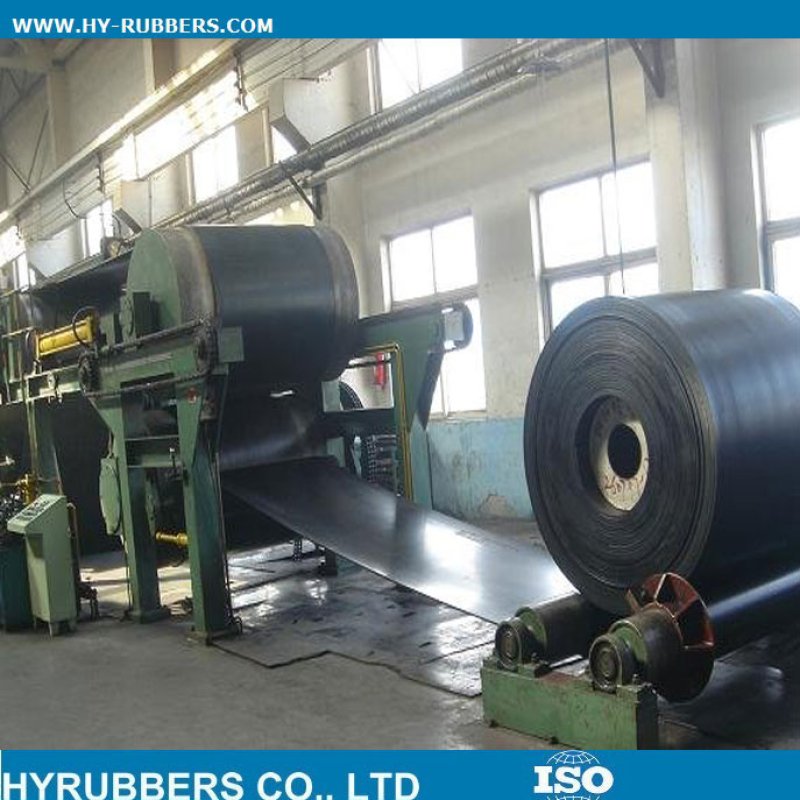

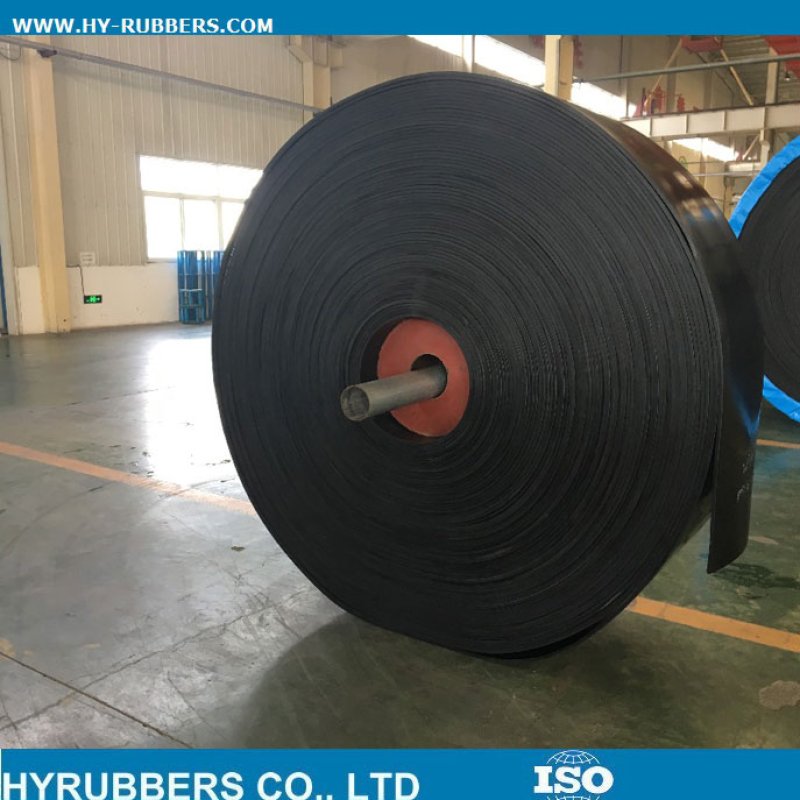

3 production lins for fabric conveyor belt, packed with waterproff nylon bag. And the 250m or 300m/roll could be selection.





Different test equipments could complete the ozon test, fire test, anti-stastic test, tensile strength test etc.













1. Are you factory?

Yes, Hyrubebrs Co., Ltd is subsidiary of Hyrubbers Group Limited. HYRUBBERS is the leading manufacturer of conveyor belt . We enjoy a nice reputation as "There’s nothing in our world more important than your business. "



2. Where is your factory?

Qingdao, Shandong, China. Welcome to visit our factory.



3. How many years experience you have?

We have 17 years experience on hydraulic hose since 1999.



4. How many staffs of your factory?

Our factory has over 260 staffs including 3 engineers and 10 technicians.



5. Do you have a special price and service for wholesale?

Yes, Since we are focus on supply our conveyor belt  to Wholesalers and distributors to develop our B2B business.We will provide the most competitive price and best service to support our wholesale customers.



6. Can you accept OEM ?

Yes, OEM is acceptable.



7. How do you ensure the quality?

We have strict QC process:

1). For raw material;

2). During the half of production;

3). Final QC before shipment

More details please review production details.



8. Can I order one piece for sample to test the quality?



Yes, the samples are free. Express cost are on buyer side.
