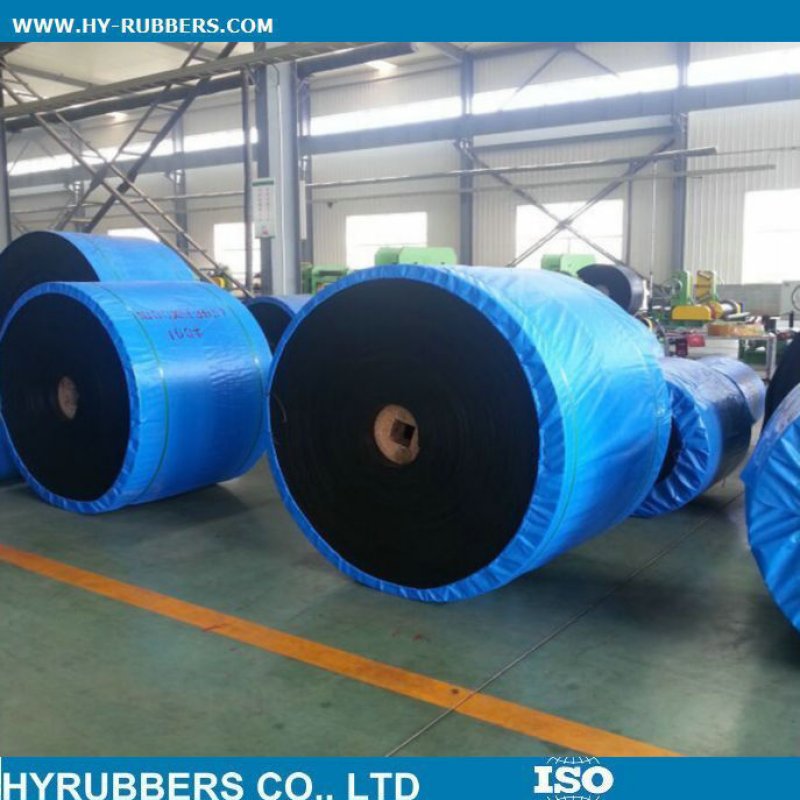

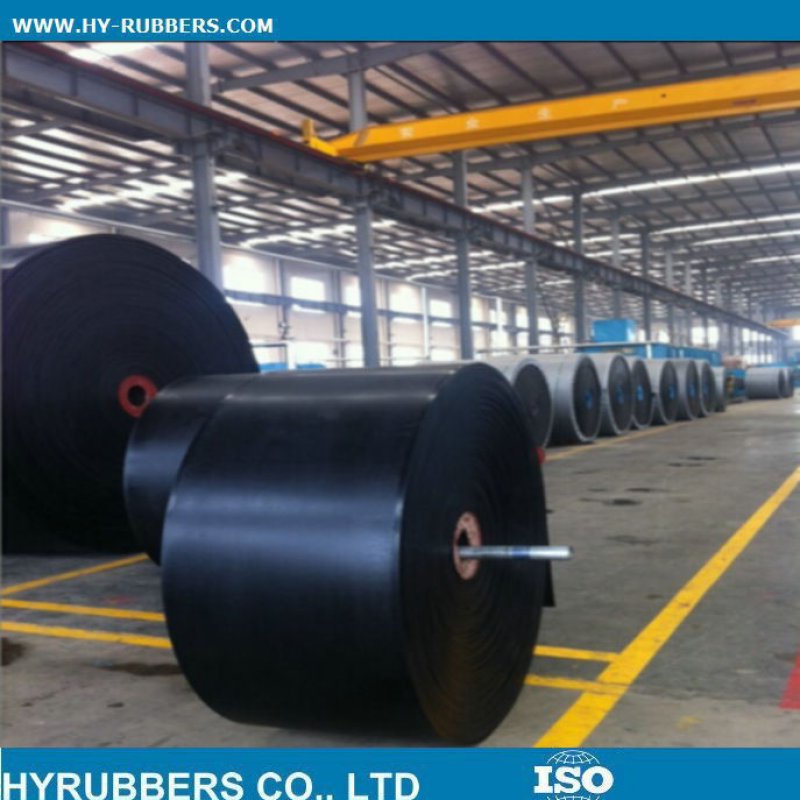

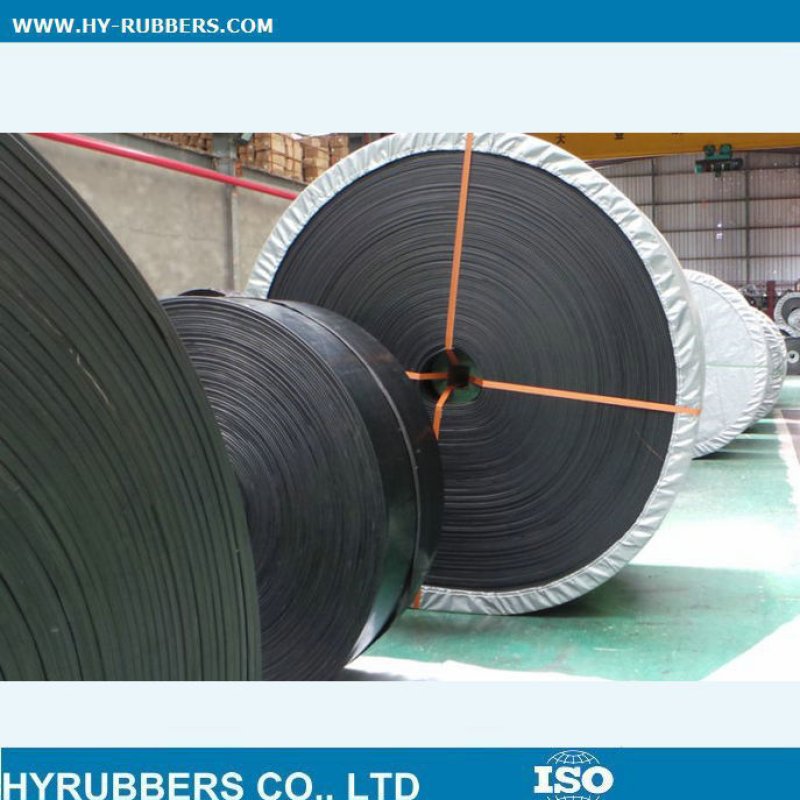

CC conveyor belt manufacture

CC conveyor belt manufacture

Product Details
Product Description

Cotton canvas is woven by cotton fibers both in warp and in weft, its elongation is relatively low, it is good in mechanical fastening and adhesion with rubber.

Cotton conveyor belt has relatively small deformation under high temperature condition, suitable for short-distance and light-load transportation of materials.

Polyester cotton conveyor belt is the upgraded product of cotton conveyor belt, and its tension resistant body is woven by polyester cotton fibers in warp and cotton fibers in weft.

ts comprehensive physical and mechanical characteristics are obviously better than those of cotton conveyor belt, especially the belt body is thinner and thus the belt lighter, the belt can reduce energy and material consumption for users.

It is the ideal selection for medium, short distance and medium-load transportation of materials.
Specifications available:

Carcass Fabric Structure Type No. of Plies Cover Thickness (mm) Belt Width (mm)
Warp Weft Top Bottom
CC Cotton Cotton CC-56 2-6 3.0-18.0 1.5-10.0 300-2000
TC Polyester Cotton TC-70




Standards:
GB/T7984-2001 idt ISO9001:2000 standard.
Features:
Good flexibility, groove formation property and cost-effective. It is mainly used to transport powder,small and medium granular or less wearing material and some other articles to the belt at common temperature.
Structure:
It uses multi-layer cotton canvas or terylene cotton canvas as carcass and finished through the processes of calendering, firming and vulcanizing, etc.
Types:
Cotton canvas type and terylene cotton canvas type, there are also some kinds of cold resistance Cover Physical and Mechanical Properties

Item
Cover type and Property
H
D
L
Tensile Strength Mpa≥
24.0
18.0
15.0
Elongation of Breaking % ≥
450
400
350
Changing rate for tensile strength
Elongation at breaking after Ageing 70℃x168h %
+-25
+-25
225
Wear away quantity mm3
120
100
200
Note : type H is for high tear condition, D for high abrasion condition, L for ordinary condition.

ProductSpecification:
Fabric Structure
Fabric material
No. of fabric plies
Width
mm
Length
m
Cover thickness
mm
Warp
Weft
Top
Bottom
Cotton Vanvas
Cotton
Cotton
3-12
300-2000
1-300
2.0-12
1.0-5.0
Terylene Cotton Canvas
Terylene
Cotton
Cotton
3-12
300-2000
1-300
2.0-12
1.0-5.0
Note: Belt Cover thickness, fabric ply and length can be made upon clients request.
