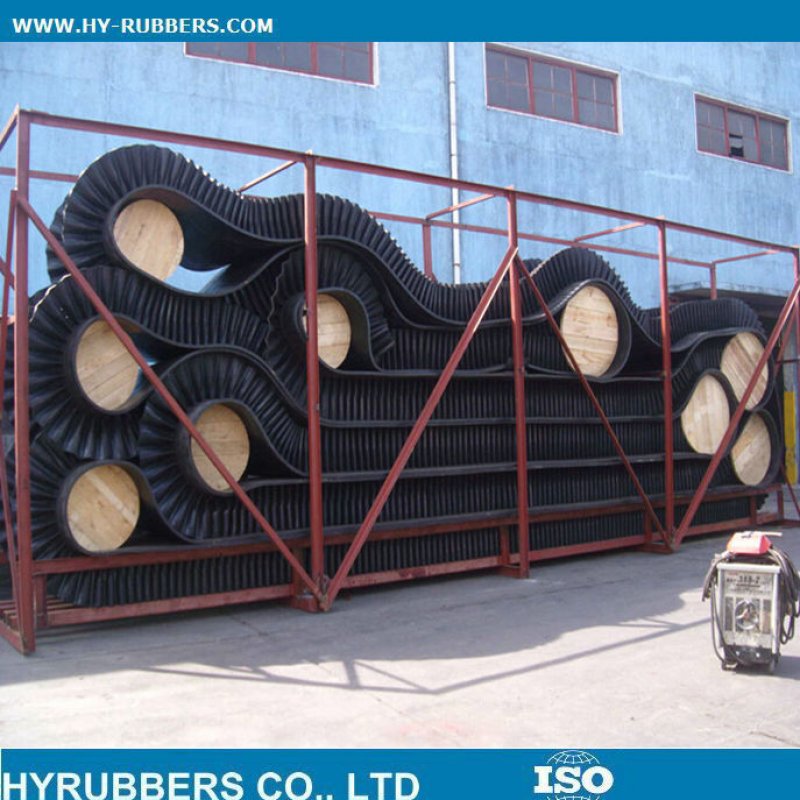

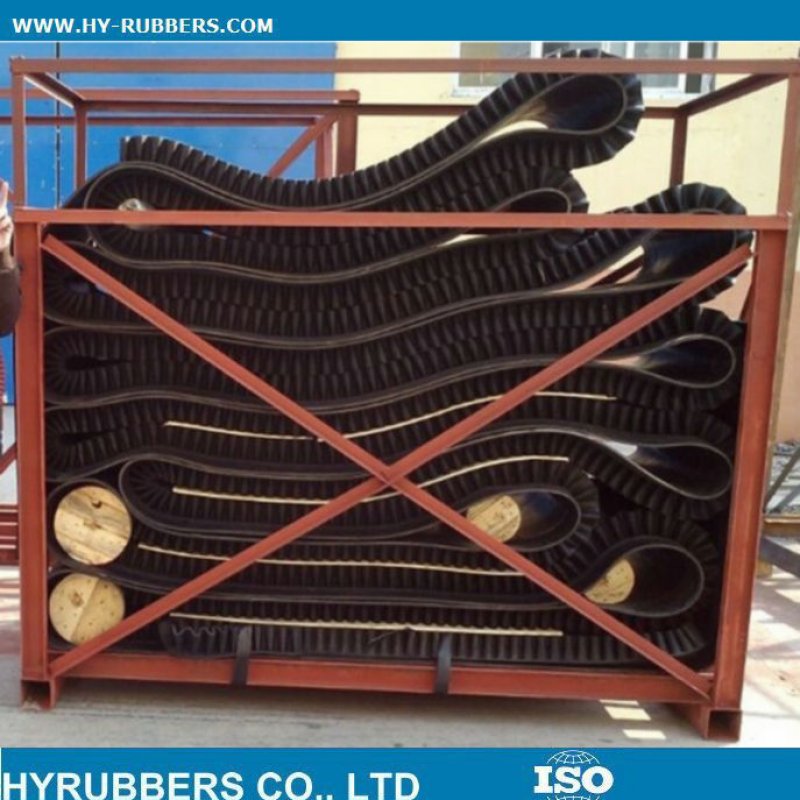

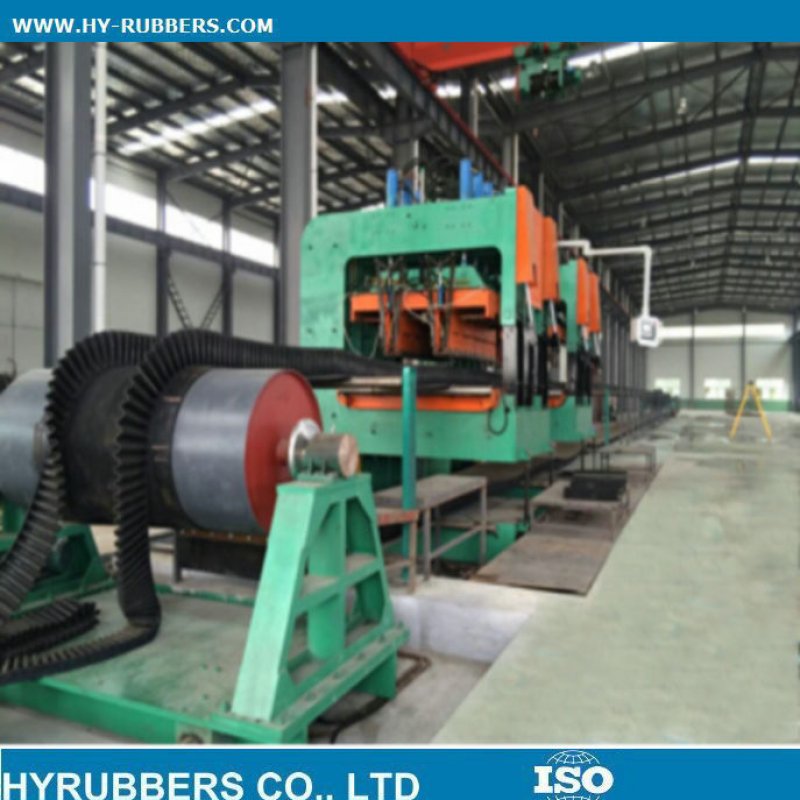

HYRUBBERS corrugated sidewalls represent the latest in design ideas and manufacturing techniques.The Sidewall design ensures maximum flexing without fatigue, the profile has excellent vertical stability for load retention and return side support. The design allows for high compression to ensure smooth inner deflection around small radii. Another important design feature is that the sidewalls can be pressed from both sides when mounting, this offers much higher bond strengths and security.
|
Name
|
Pattern
|
Application
|
|
Straight-flange side wall conveyor belt |
There is a straight-flange sidewall higher than belt on either side of the belt.The height of the sidewall is 10-30mm. |
It can convery power,granular,paste and liquid materials that scatter easily. |
|
Wedge-shape sidewall conveyor belt |
There is non-connecting wedge-shape sidewall higher than belt on either side of the belt.The height of sidewall is about 20-80mm. |
It can convery power,granular and small lump materils which scatter eassily. |
|
Sinuate flange sidewall conveyor belt |
There is continuous sinuate flange sidewall higher than belt on either side of the belt.The height of the sidewall is about 60-500mm. |
It can convery power,granular small lump,paste and liquid materials that scatter easily. |
The width of sidewall conveyor belt that thecorporation can provide is no more than 3100m.
We can provide such products as conventional-type,heat-resistant type,cold-resistant type,acid and alkali resistant type,static electricity,conductive-type,high-temperature resistant type(<=150 c)and hygiene-type,etc.
The Conveyor belt with other type of sidewall or special charactres require,we could negotiate to trialmanufacture.
3.1 Application: Fit for conveing material under steeply inclination betoeen 0-90 degree.
3.2 Features:
1.The max.inclination angle can be upto 90 degrees when conveying materials.
2.Big converying ability and preventing materials from sliding off.
3.Easy to change the transportation angle either from level to inclination or from inclination to level.
4.Conveyor occupies small area.
4.Sidewall and Cleat
Type S Standard construction in heights from 40mm to 120mm. Please require if fabric reinforcement is needed for this type.
Type MDSF Heavy duty construction including fabric reinforcement as standard in heights from 120mm to 300mm.The fabric reinforcement is of the diagonal type ensuring maximum flexibility with high vertical stability. If required these can be supplied without fabric reinforcement to special order.
Type HHDF Heavy duty special design including fabric reinforcement as standard in heights from 300mm to 630mm.
|
Base Belt Width(mm)
|
Sidewall Height (mm)
|
Cleat height H1(mm)
|
Sidewallwidth Bf(mm)
|
Effective Belt Width Br(mm)
|
Free Edge R(mm)
|
|
300
|
40
|
35
|
25
|
25
|
35
|
|
60
|
55
|
50
|
120
|
40
|
|
|
80
|
75
|
||||
|
400
|
60
|
55
|
50
|
180
|
60
|
|
80
|
75
|
||||
|
100
|
90
|
||||
|
500
|
80
|
75
|
50
|
250
|
75
|
|
100
|
90
|
||||
|
120
|
110
|
||||
|
650
|
100
|
90
|
50
|
350
|
100
|
|
120
|
110
|
||||
|
160
|
140
|
75
|
300
|
||
|
800
|
120
|
110
|
50
|
460
|
120
|
