Product Details

Chevron conveyor belt

Product Description

Chevron conveyor belt is composed of belt carcass and chevron shape and height may be different because of different conveyed material and griant of conveyor.

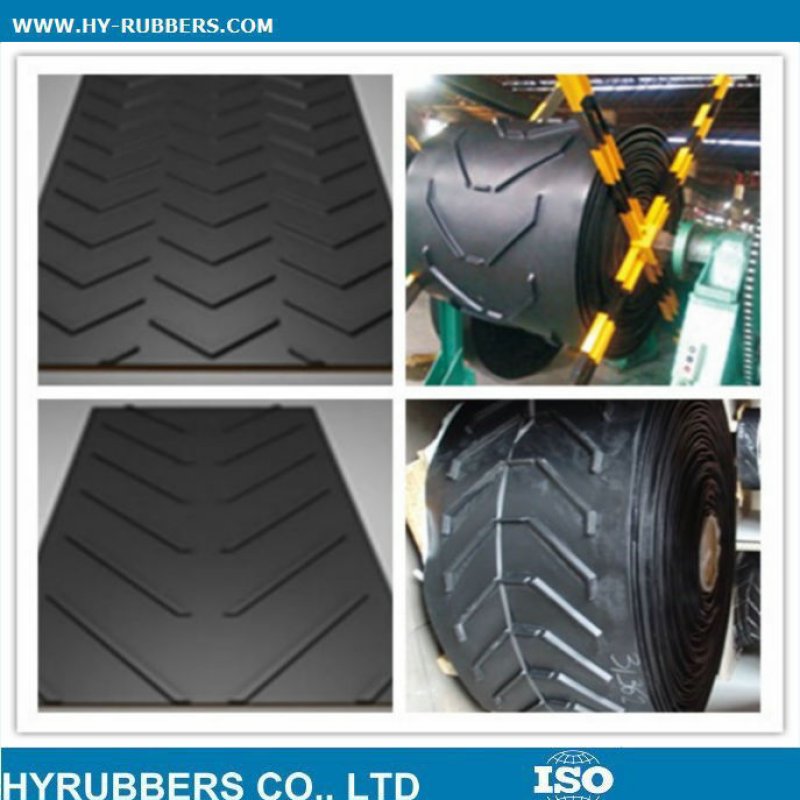

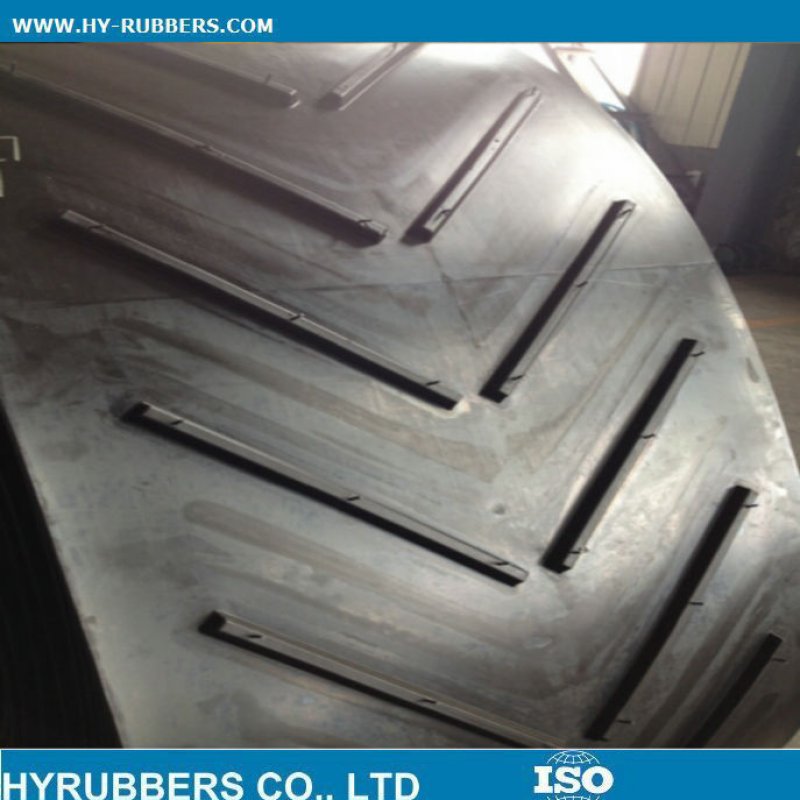

1. Shape and characteristics On surface of the belt there is chevron pattern higher than the belt body. The chevron may be either open-end or closed. Each kind of pattern includes three types of high, medium and low.

2. It can convey powdered, granulated and small lump materials at the gradient of no more than400.It can also convey packaged materials

Chevron shape, cleat shape, U shape, herringbone shape, cylinder pattern
Width of belt: 300mm-2200mm
Height of Pattern:5,10,15,20,25,30(mm)

Pattern pitch:125,200,250,330,400,500(mm)

Note: Pattern can be designed according to the user’s requirement



Special rubber compound for chevron, enhance the life of chevron
Can carry bulk material at angles of 17~ 18 and bagged material at angles of 30~ 50
Cleat angle and pitch are designed for smooth travel over return idlers
Cleats and top cover rubber are mono block molding for strength
Patterns prevent or reduce slide back and increase the amount of product moved by quick pick-up at the point of loading
Convey wet and/or loose materials or bags up steep inclines.
Quarries, Sandpits
Cement Works, Lime Works
Mobile Crushers, Screens, Milling Machines
Washing Plant
Salt Mines, etc.


Packaging & Shipping

Standard packaging:Packed in rolls and coverd by fabric proof cloth.Clients' requirements are also respected.

Delivery datail:within 15-30 days in general or depends on quantity of the order





Why you choose us?

1.Super high quality.

2.Competitive price.

3.Good producing equipment and technology.

4.Large production ability.

5.Prompt delivery.

6.Small order accepted.

7.Excelent sale and after-sale service.

8.OEM available.


Is the product sample available?

Yes,all product samples are available for you to test the quality.


Is OEM available?

Yes,OEM is available.We have professional designer to help your brand promotion.


Are the products tested before shipping?

Yes,all of our products were qualified before leave the factory,we test every batch every day.


Delivery details?

Within 10-20 days in general or depends on quality of the order.


Packaging details?

Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.


What's the quality guarantee?

We have totally quality guarantee to customers,we will be responsible for any quality problems.
