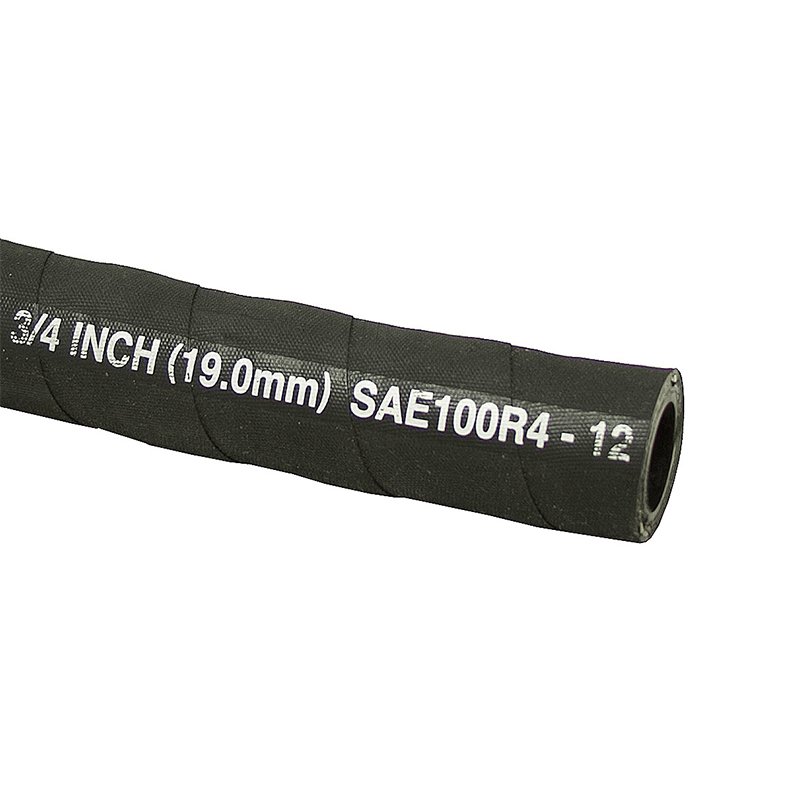

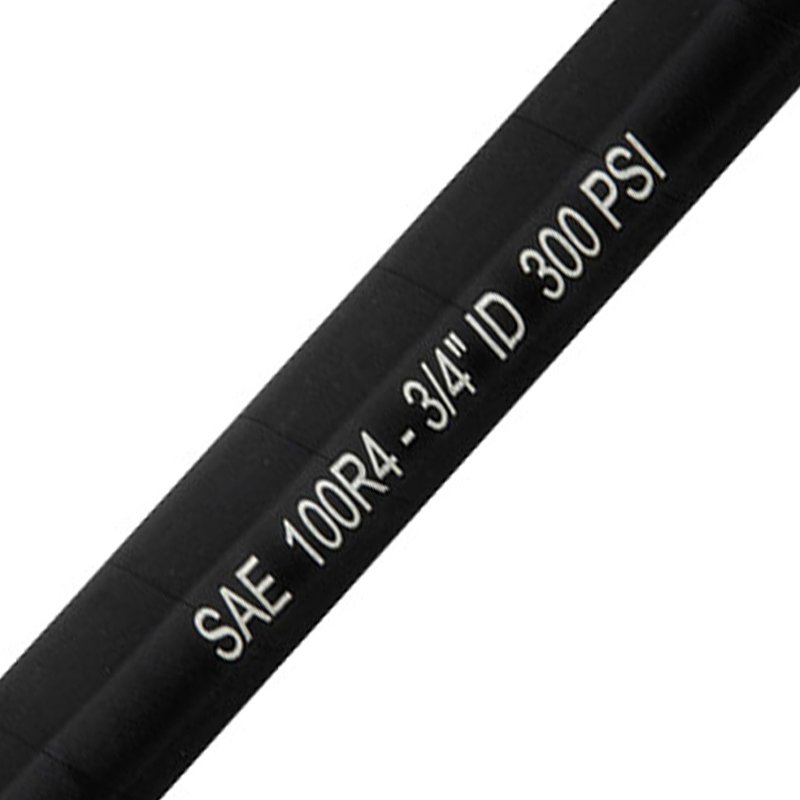

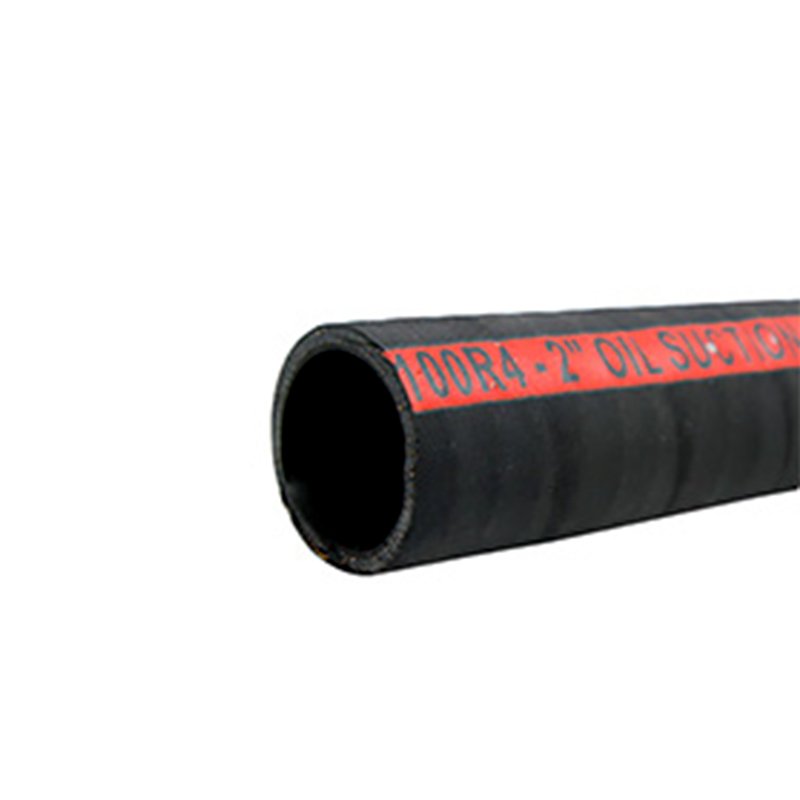

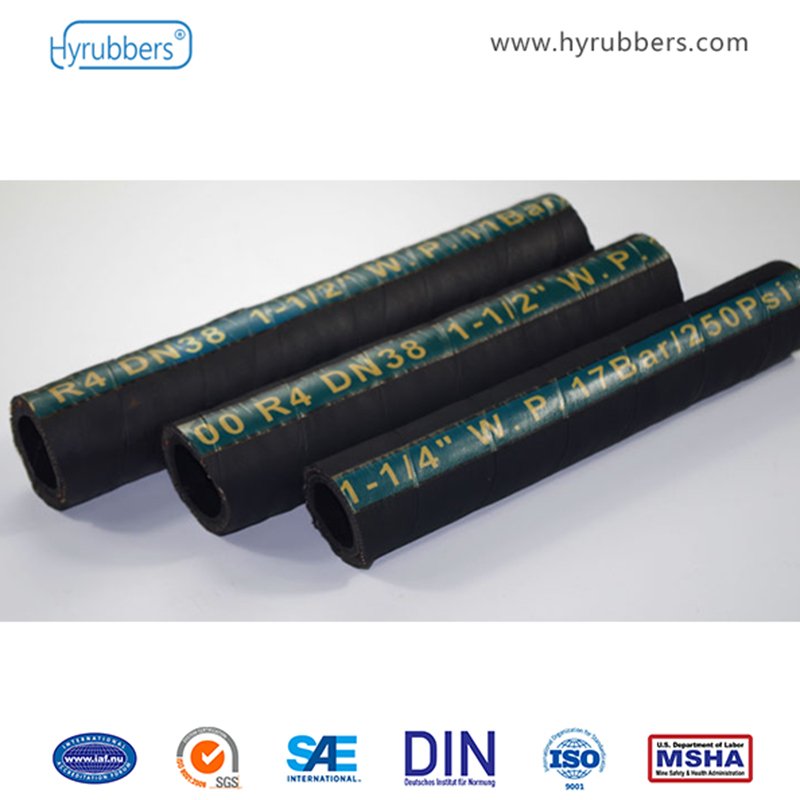

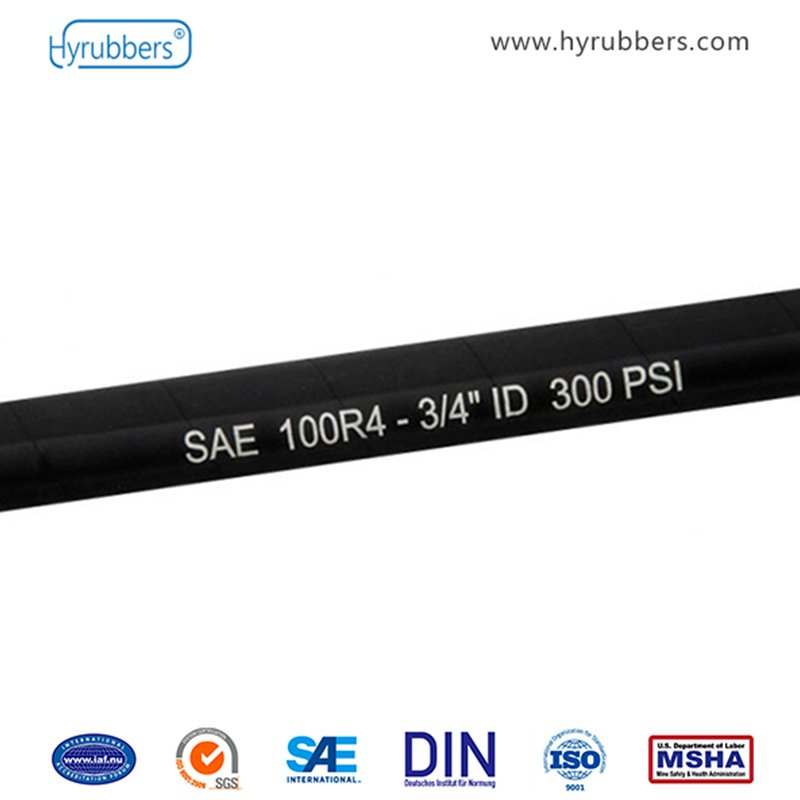

SAE 100 R4 STANDARD

SAE 100 R4 STANDARD

Product attributes

Size: 3/16”–3/4”

Working pressure: 34bar–21bar

Lenght: 50m/100m

Weight: 0.11–0.4kg/m


Product Details

APPLICATION: Used in hydraulic systems to return the oil to tank for reuse. Resistant to aromatic content < 40%

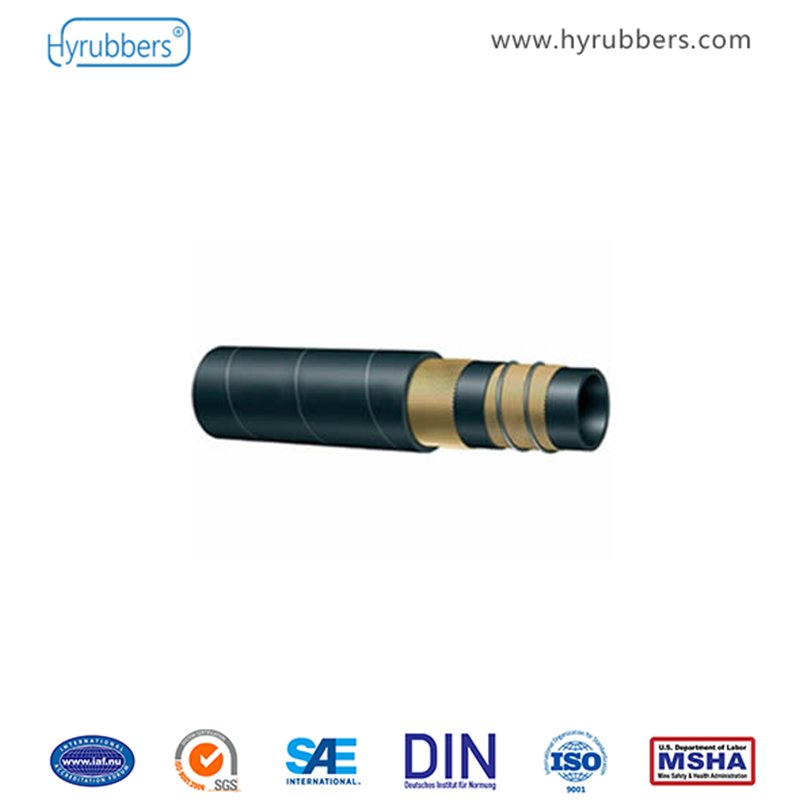

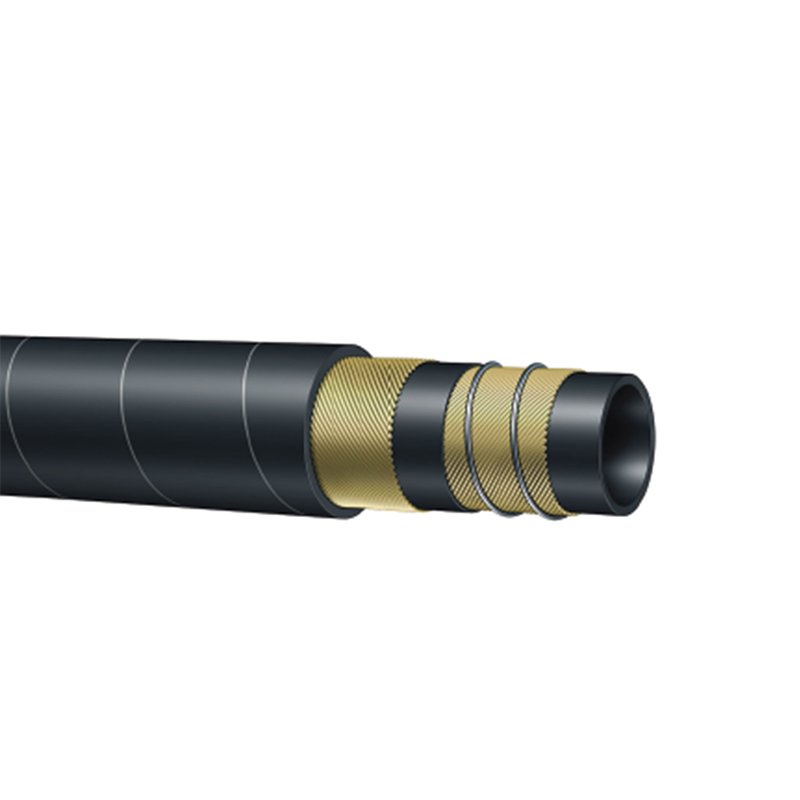

INNER TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Two high textile with steel helical body wire

COVER: Oil, and weather resistant synthetic rubber

SURFACE: wrapped surface

Size: 3/16”–3/4”

Working pressure: 34bar–21bar

Lenght: 50m/100m

Weight: 0.11–0.4kg/m

WORKING TEMPERATURE: From -40℃ (-104 ℉ ) to +100℃(+212 ℉)


SPECIATION:

DN

Hose I.D

Hose O.D

Working Pressure

Burst Pressure

MIN B.R

Weight

Length

inch

mm

mm

MPa

psi

MPa

psi

mm

kg/m

metres

5

3/16″

4.8

11.1

3.4

500

13.8

2000

50

0.11

50/100

6

1/4″

6.4

12.7

2.8

400

11

1600

65

0.15

50/100

8

5/16″

7.9

14.3

2.8

400

11

1600

75

0.16

50/100

10

3/8″

9.5

15.9

2.8

400

11

1600

75

0.18

50/100

13

1/2″

12.7

19.8

2.8

400

11

1600

100

0.26

50/100

16

5/8″

15.9

23

2.4

350

9.7

1400

125

0.29

50/100

19

3/4″

19

26.6

2.1

300

8.3

1200

150

0.4

50/100
