Chevron conveyor belt is composed of belt carcass and chevron shape and height may be different because of different conveyed material and griant of conveyor.

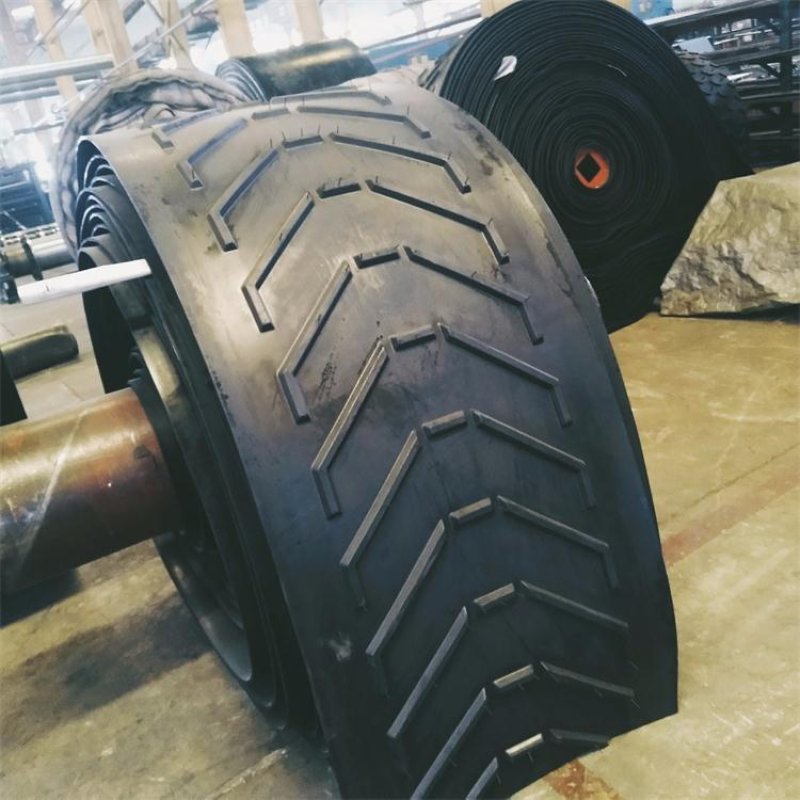

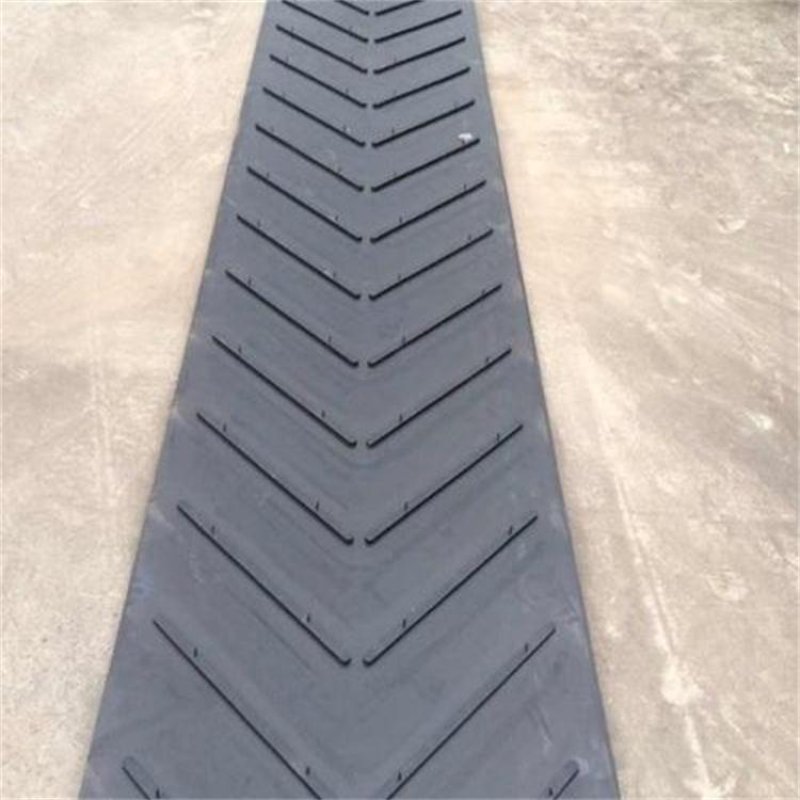

Chevron conveyor belt shape and characteristics On surface of the belt there is chevron pattern higher than the belt body. The chevron may be either open-end or closed. Each kind of pattern includes three types of high, medium and low.
Chevron conveyor belt can convey powdered, granulated and small lump materials at the gradient of no more than400.It can also convey packaged materials

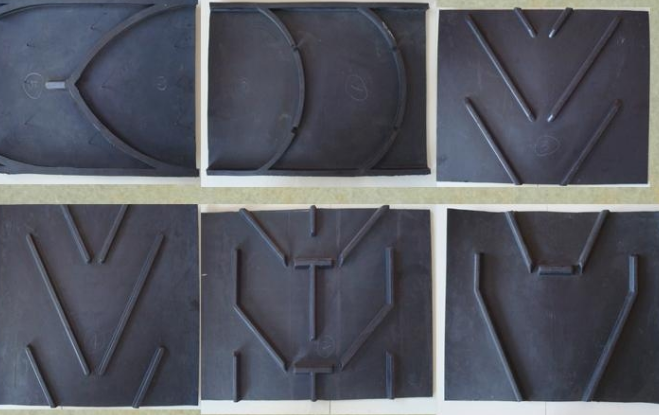

Chevron shape, cleat shape, U shape, herringbone shape, cylinder pattern
Chervron voncey belt width: 300mm-2200mm
Chervron voncey belt height of Pattern:5,10,15,20,25,30(mm)
Chervron voncey belt pattern pitch:125,200,250,330,400,500(mm)
Note: Chevron conveyor belt pattern can be designed according to the user’s requirement
Chevron conveyor belt with special rubber compound for chevron, enhance the life of chevron
Chevron conveyor belt can carry bulk material at angles of 17~ 18 and bagged material at angles of 30~ 50
Chevron conveyor belt is cleat angle and pitch are designed for smooth travel over return idlers
Chevron conveyor belt cleats and top cover rubber are mono block molding for strength
Chevron conveyor belt patterns prevent or reduce slide back and increase the amount of product moved by quick pick-up at the point of loading

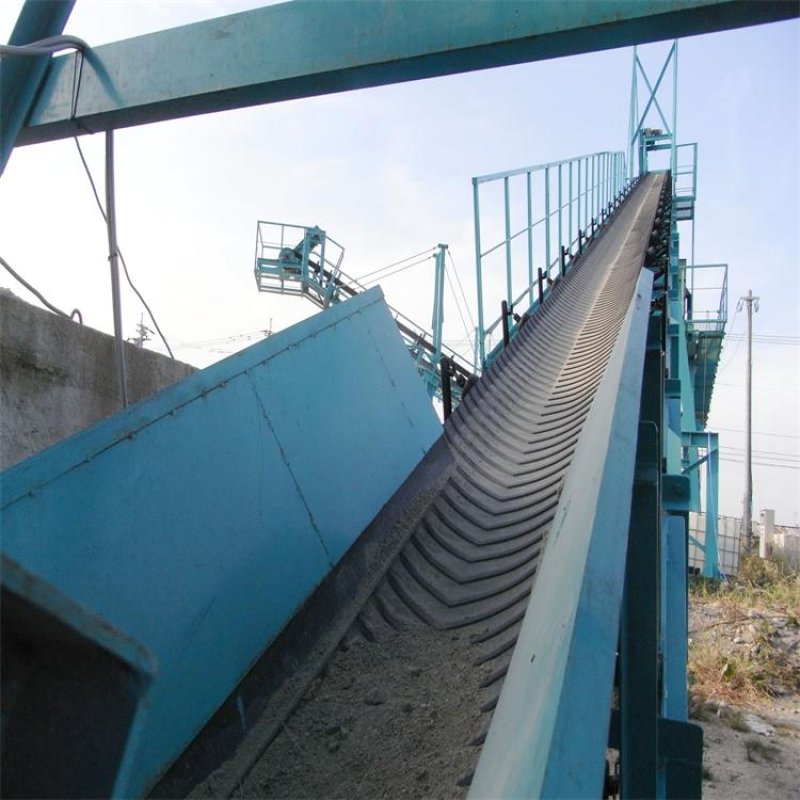

Chevron conveyor belt convey wet and/or loose materials or bags up steep inclines.
Chevron conveyor belt standard packaging:Packed in rolls and coverd by fabric proof cloth.Clients' requirements are also respected.
Chevron conveyor belt delivery datail:within 15-30 days in general or depends on quantity of the order
