Low pressure water air rubber hose

Low pressure water air rubber hose

Product Details

Low pressure water air rubber hose,Low pressure  hose,Low pressure air hose



Feature of rubber air hose , rubber water hose:

Tube: SBR blended, black, smooth

Reinforcement: Texile braided high tensile synthetic yarn

Cover: EPDM/SBR blended, black, red or yellow, weather and ozone resistant

Applications: Wide range service in general industrial services, mobiles shop pneumatic tools, etc...

Temperature: -35~80℃



Technical data of rubber air hose ,  rubber water hose:

Size Length Weight
mm inch I.D.  mm O.D.mm meters/roll Kg/m
6mm 1/4" 6.3+-0.3 15+-0.3 50/100 0.190
8mm 5/16" 7.9+-0.3 17+-0.3 50/100 0.230
10mm 3/8" 9.5+-0.3 19+-0.3 50/100 0.280
13mm 1/2" 12.7+-0.3 22+-0.3 50/100 0.410
16mm 5/8" 15.8+-0.3 26+-0.3 50/100 0.450
19mm 3/4" 19+-0.3 30+-0.3 50/100 0.560
25mm 1" 25.4+-0.3 36+-0.3 50/100 0.800
32mm 1-1/4" 31.8+-0.3 44+-0.3 50 1.080
38mm 1-1/2" 38.1+-0.3 52+-0.3 50 1.460
51mm 2" 50.8+-0.3 66+-0.3 50 1.960




The cutting side of the rubber air hose , rubber water hose:



Competitive Advantage of rubber air hose, rubber water hose :

 1) We are professional manufacturer with 11 years’ experience, enjoy good reputation oversea

 2) Full range of advanced equipment ,testing line ensure production capacity and satisfactory quality

 3) Top quality with competitive price and fast delivery bring us very good reputation all over the world .

 4Our Hose includes such features as constant working pressures, low expansion, low temperature

 and high temperature application



We also could offer the multifunctional rubber hose:



R4 hose:

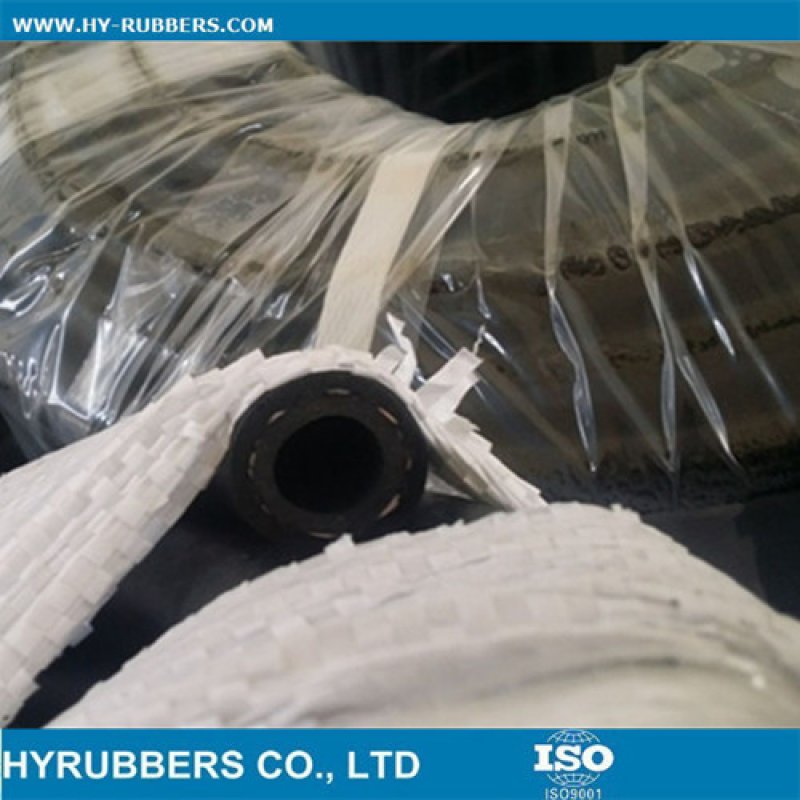

Package of rubber air hose, rubber water hose:





Exhibition picture:



Our rubber air hose , rubber water hose selling network:





Our rubber hose certificate:

We also could offer the rubber hydraulic hose:
