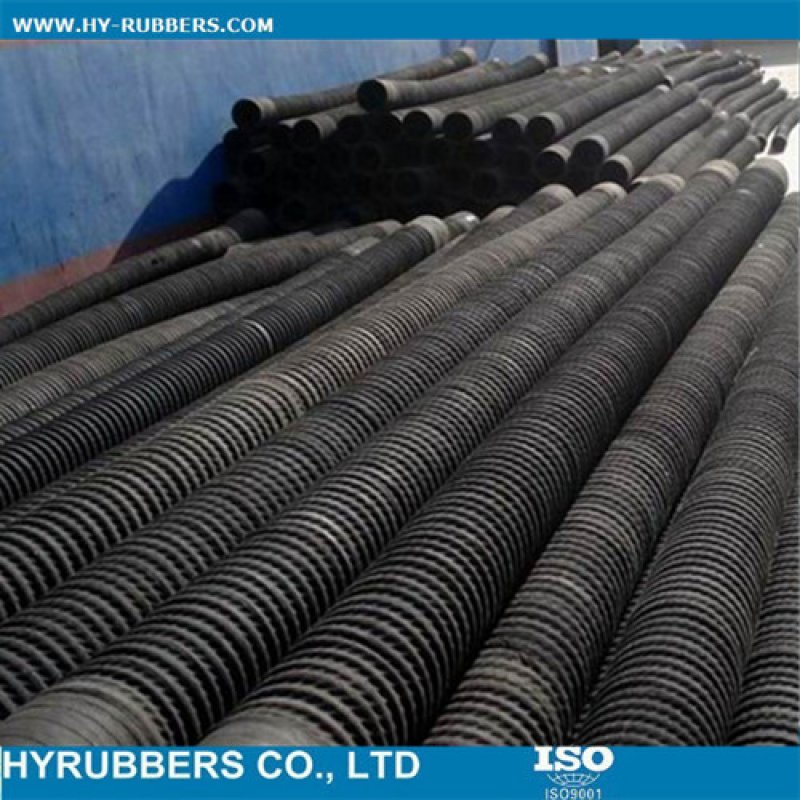

Suction and discharge hose,fabric suction hose,rubber suction hose
Tube :Oil resistant rubber
Reinforcement : Fabric cloth & Steel wire
Cover:Oil, weather and ozone resisiant rubber
Application: This hose is suitable for sucking and discharging fuel or general neutral liquid for mine, factory, construction
| SIZE | I.D | W.P | Size of soft joint | Length | ||||
| 6BAR | 10BAR | Length | Tolerance | m | Tolerance | |||
| mm | Min | Max | Layers | mm | mm | mm | ||
| 25 | 23.8 | 26.2 | 2 | 3 | 100 | ±15 | 4--10 | ±100 |
| 32 | 30.8 | 33.2 | 2 | 3 | 100 | ±15 | 4--10 | ±100 |
| 38 | 36.8 | 39.2 | 2 | 3 | 100 | ±15 | 4--10 | ±100 |
| 51 | 49.8 | 52.2 | 3 | 4 | 100 | ±15 | 4--10 | ±100 |
| 64 | 62.5 | 65.5 | 3 | 4 | 100 | ±15 | 4--10 | ±100 |
| 76 | 74.5 | 77.5 | 4 | 5 | 100 | ±15 | 4--10 | ±100 |
| 89 | 87.5 | 90.5 | 4 | 7 | 100 | ±15 | 4--10 | ±100 |
| 102 | 100 | 104 | 5 | 8 | 100 | ±15 | 4--10 | ±100 |
| 127 | 125 | 129 | 5 | 8 | 100 | ±15 | 4--10 | ±100 |
| 152 | 150 | 154 | 5 | 7 | 100 | ±15 | 4--10 | ±100 |
| 203 | 200.5 | 205.5 | 6 | 8 | 100 | ±15 | 4--10 | ±100 |
| 254 | 251.5 | 256.5 | 7 | 10 | 100 | ±15 | 4--10 | ±100 |
| 305 | 302.5 | 307.5 | 7 | 10 | 100 | ±15 | 4--10 | ±100 |
We could offer the follow Suction and discharge hose:
1) Water suction and discharge hose

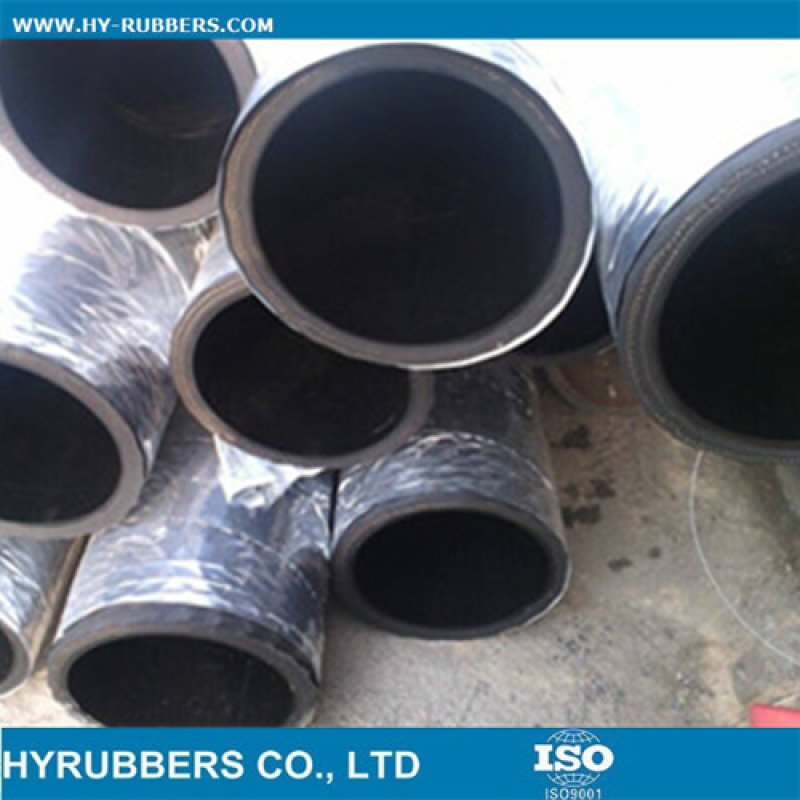

2) Oil suction and discharge hose
3) Acid & alkali suction and discharge hose

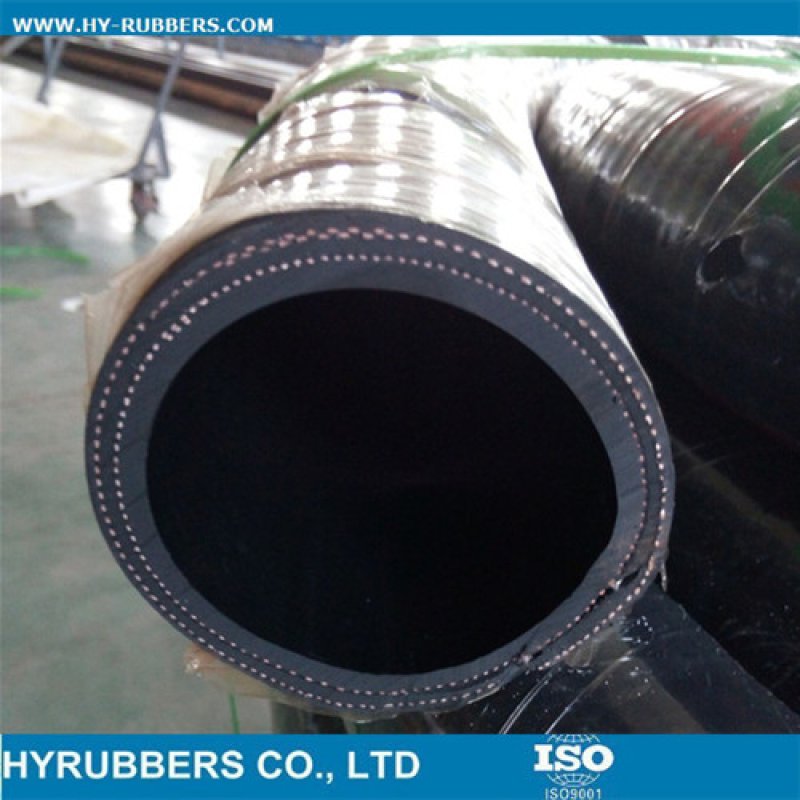

4) Smooth suction and discharge hose
About Us
1) Since 1999, 17years experience produce the welding hose
2) We are factory with good quality and cheap price
3) Delivery time :10~20 days after prepayment
4) Strict quality testing
5) 7X24 hours service
| Size | ID | W.P. | Size of soft joint | Length | ||||
| 6 BAR | 10 BAR | Length | Tolerance | m | Tolerance | |||
| mm | Min | Max | Layers | mm |
mm |
|||
