Cheap price rubber suction hose in China

Cheap price rubber suction hose in China

Product Details

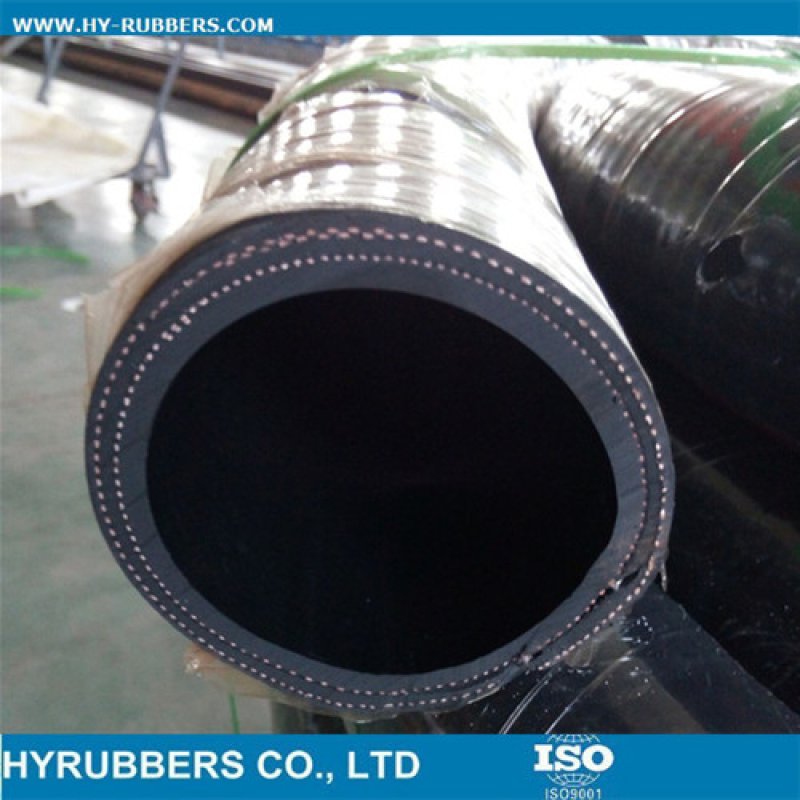

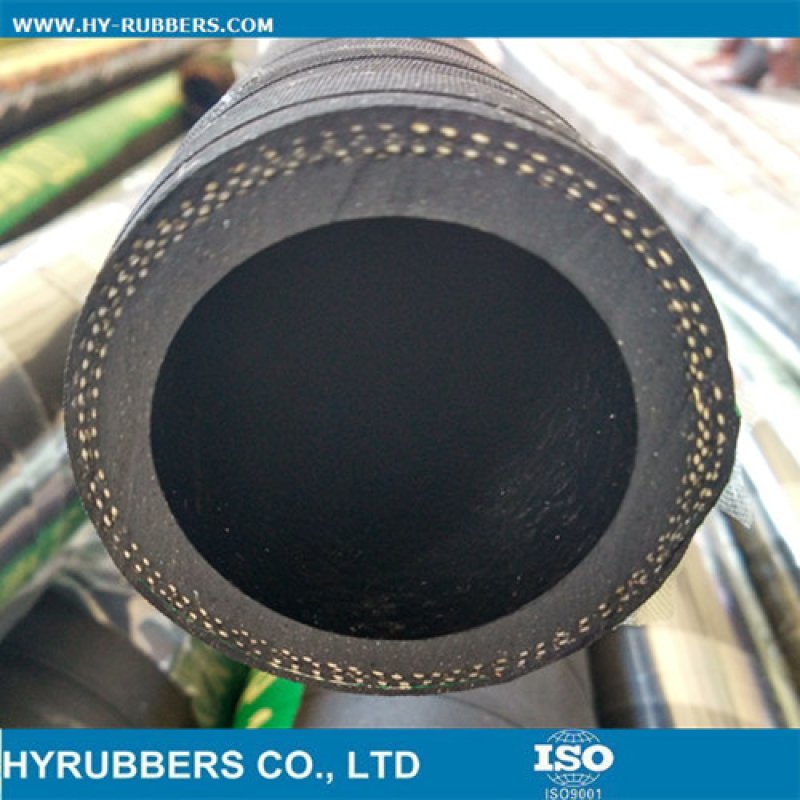

Acid&Alkali Suction/Discharge Hose,Suction/Discharge Hose,suction hose

Tube :EPDM/SBR blended black rubber

Reinforcement : braided textile fibers and spiral steel wire

Cover:EPDM/SBR blended weather and abrasion resistant rubber

Application:This hose is suitable for delivering the acid-base solution that PH is not more than 40% sulfuric acid or 15% sodium hydroxide(except nitrate).





SIZE I.D W.P Size of soft joint Length
6BAR 10BAR Length Tolerance m Tolerance
mm Min Max Layers mm mm mm
25 23.8 26.2 2 3 100 ±15 4--10 ±100
32 30.8 33.2 2 3 100 ±15 4--10 ±100
38 36.8 39.2 2 3 100 ±15 4--10 ±100
51 49.8 52.2 3 4 100 ±15 4--10 ±100
64 62.5 65.5 3 4 100 ±15 4--10 ±100
76 74.5 77.5 4 5 100 ±15 4--10 ±100
89 87.5 90.5 4 7 100 ±15 4--10 ±100
102 100 104 5 8 100 ±15 4--10 ±100
127 125 129 5 8 100 ±15 4--10 ±100
152 150 154 5 7 100 ±15 4--10 ±100
203 200.5 205.5 6 8 100 ±15 4--10 ±100
254 251.5 256.5 7 10 100 ±15 4--10 ±100
305 302.5 307.5 7 10 100 ±15 4--10 ±100




We could offer the follow Suction and discharge hose:

1) Water suction and discharge hose

2) Oil suction and discharge hose

3) Acid & alkali suction and discharge hose

4) Smooth suction and discharge hose



Company Information

   About  Us

  • 17+ years experience in rubber hose industry.
  • Main products: hydraulic hose, welding hose, oil hose, suction hose, etc.
  • Located in Qingdao,China, closed with the seaport
  • 32 steel braiding machine, 2 sprial machine for 4 wire hoses, and 2 cotton braiding machine
  • Outstanding R&D engineers team.
  • OEM available.
  • Consistent and well trained team.
  • Experienced sales team for different markets.
  • ISO9001 approved production process.



1) Since 1999, 17years experience produce the welding hose
2) We are factory with good quality and cheap price
3) Delivery time :10~20 days after prepayment

4) Strict quality testing

5) 7X24 hours service





Size ID W.P. Size of soft joint Length
6 BAR 10 BAR Length Tolerance m Tolerance
mm Min Max Layers mm mm
