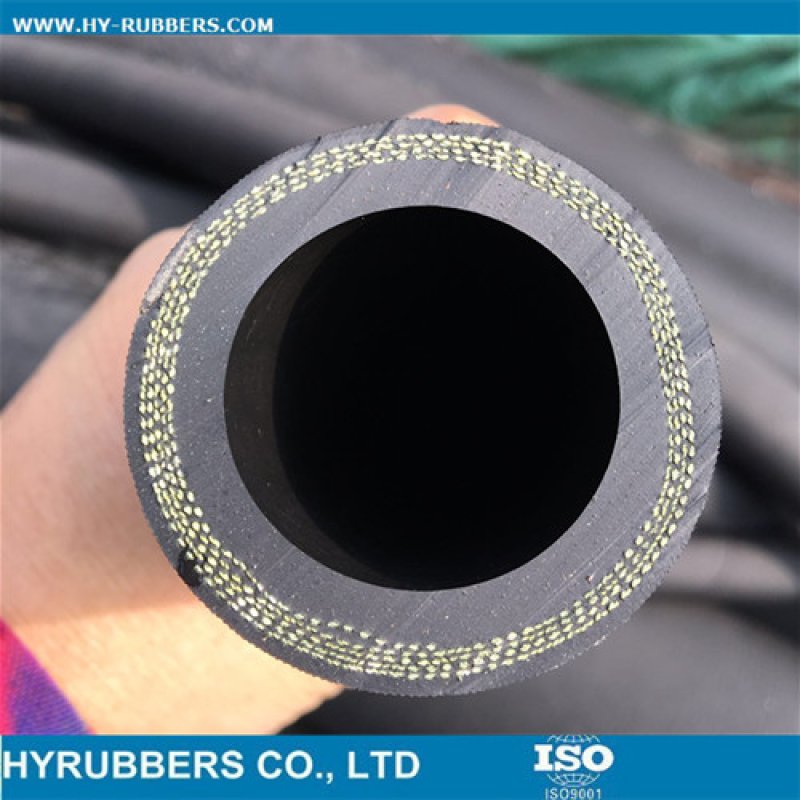

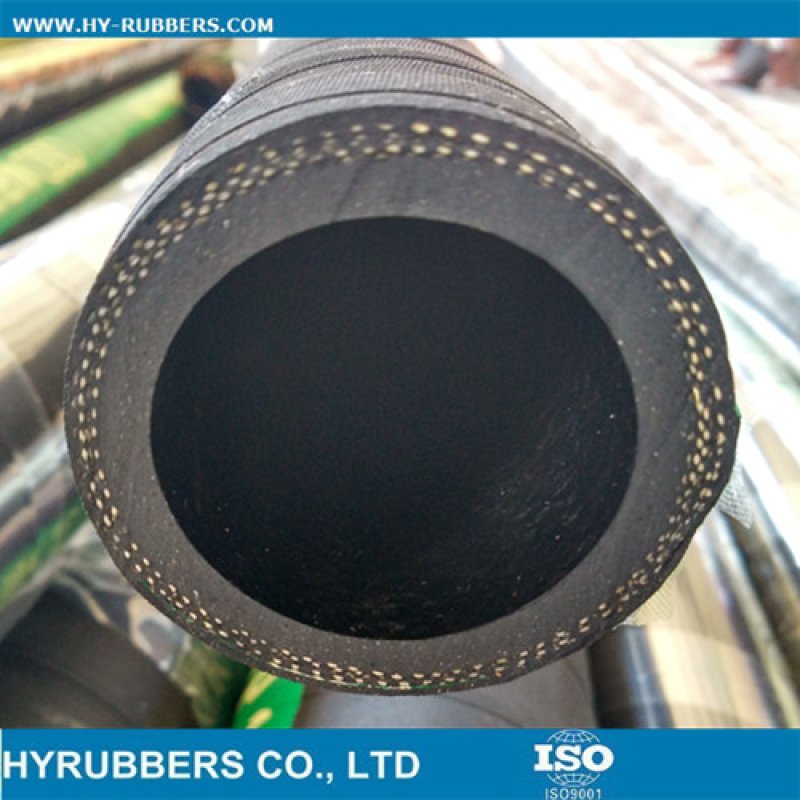

cloth insertion air hose, cloth insertion water hose,fabric insertion water hose
Russia Standard : ГОСТ 18698-79 --- В(II)
Applications :
Length is up to 20m for hoses with inside diameter from 16 to 50 mm and 6m for hoses with inside diameter of 160mm
GOST 18698-79 are used as flexible pipelines for delivering of liquids, saturated steam, gases and dry materials under pressure
Temperature range : To +50 ℃…
|
Диаметр(внутр.), мм |
Диамет(наружн.) мм |
Давление,МПа | Класс | Длина, м | |||||
| ID мм | OD(mm) |
Pressure Mpa |
Type |
Length (m) |
|||||
| 12 | 23 | 0.3;0.6;0.8;1.0 | В(II) | 10; 20 | |||||
| 16 | 27 | 0.3;0.6;0.8;1.0 | В(II) | 10; 20 | |||||
| 18 | 29 | 0.3;0.6;0.8;1.0 | В(II) | 10; 20 | |||||
| 20 | 31 | 0.3;0.6;0.8;1.0 | В(II) | 10; 20 | |||||
| 25 | 38 | 0.3;0.6;0.8;1.0 | В(II) | 10; 20 | |||||
| 32 | 43 | 0.3;0.6;0.8;1.0 | В(II) | 10; 20 | |||||
| 38 | 49 | 0.3;0.6;0.8;1.0 | В(II) | 10; 20 | |||||
| 50 | 62 | 0.3;0.6;0.8;1.0 | В(II) | 10; 20 | |||||
| 65 | 77 | 0.3;0.6;0.8;1.0 | В(II) | 9.5; 10 | |||||
| 75 | 87 | 0.3;0.6;0.8;1.0 | В(II) | 9.5; 10 | |||||
| 100 | 111 | 0.3;0.6;0.8;1.0 | В(II) | 4;10 | |||||
| 125 | 136 | 0.3;0.6;0.8;1.0 | В(II) | 4;10 | |||||
| 150 | 161 | 0.3;0.6;0.8;1.0 | В(II) | 4;10 | |||||
| 200 | 213 | 0.3;0.6;0.8;1.0 | В(II) | 4;10 |
