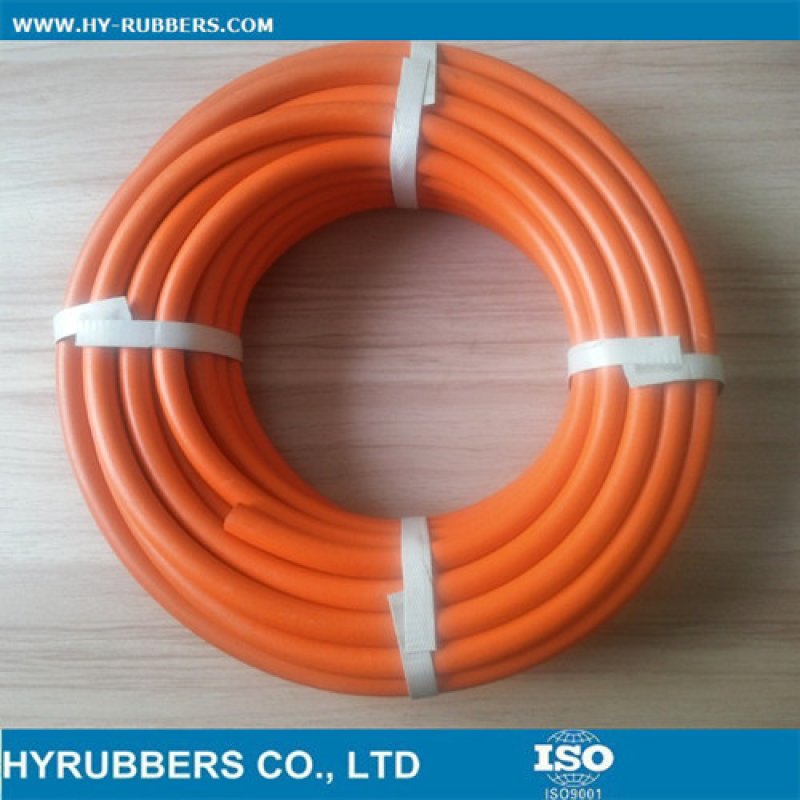

LPG gas Hose,LPG Hose,gas Hose
Construction: This product is made of special pvc modified material and double deck composite structure.Corrosion resistant,aging resistant,soft and easy to use.
Application : For conveying welding gases.
Working Temperature : -40 °C to +90 °C
| ID | ID | Wall | WP | BP | Radius | Weight |
| mm | inch | mm | bar | bar | mm | kg/m |
| 6 | 1/4" | 3.5 | 16/20 | 50/60 | 35 | 0.17 |
| 8 | 5/16" | 3.5 | 16/20 | 50/60 | 50 | 1.25 |
| 10 | 3/8" | 3.5 | 16/20 | 50/60 | 60 | 0.29 |
| 13 | 1/2" | 4 | 16 | 48 | 60 | 0.37 |
| 13 | 1/2" | 5 | 20 | 60 | 70 | 0.42 |
| 16 | 5/8" | 4 | 16 | 48 | 80 | 0.45 |
| 16 | 5/8" | 4.5 | 20 | 60 | 90 | 0.48 |
| 19 | 3/4" | 5 | 16 | 48 | 110 | 0.58 |
| 19 | 3/4" | 5.5 | 20 | 60 | 125 | 0.6 |
| 25 | 1" | 5 | 20 | 48 | 130 | 0.72 |
| 25 | 1" | 5.5 | 16 | 60 | 150 | 0.83 |
| 32 | 1 1/4" | 6 | 10 | 30 | 230 | 0.94 |
| 38 | 1 1/2" | 6 | 10 | 30 | 270 | 1.08 |
| 50 | 2" | 7 | 10 | 30 | 400 | 1.80 |
1) Since 1999, 17years experience produce the welding hose
2) We are factory with good quality and cheap price
3) Delivery time :7~15 after prepayment
4) Strict quality testing
5) 7X24 hours service
Strong package for long distance transport
