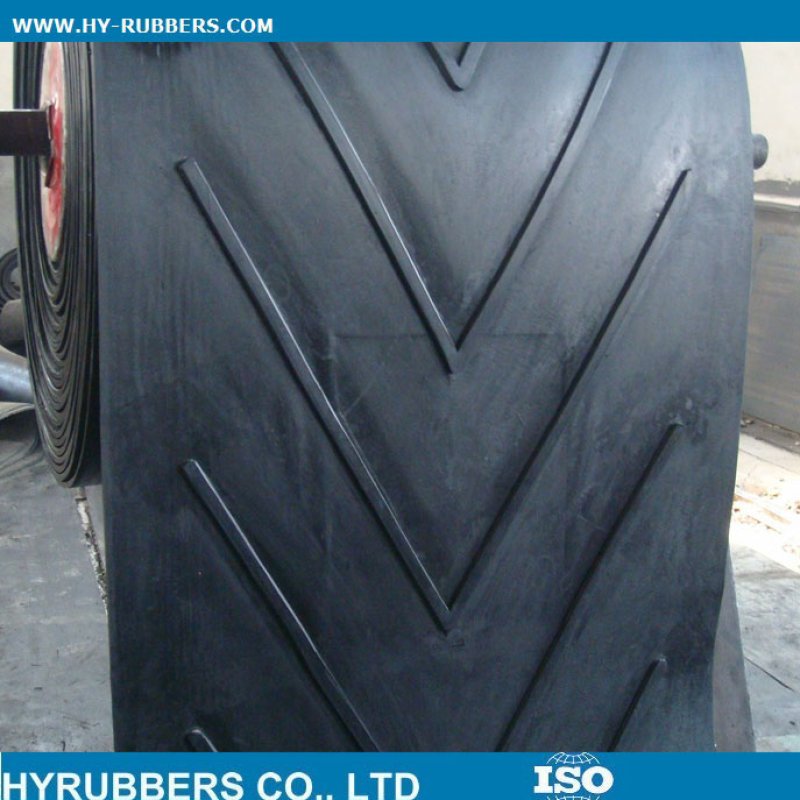

Chevron conveyor belt is composed of belt carcass and chevron shape and height may be different because of different conveyed material and griant of conveyor.

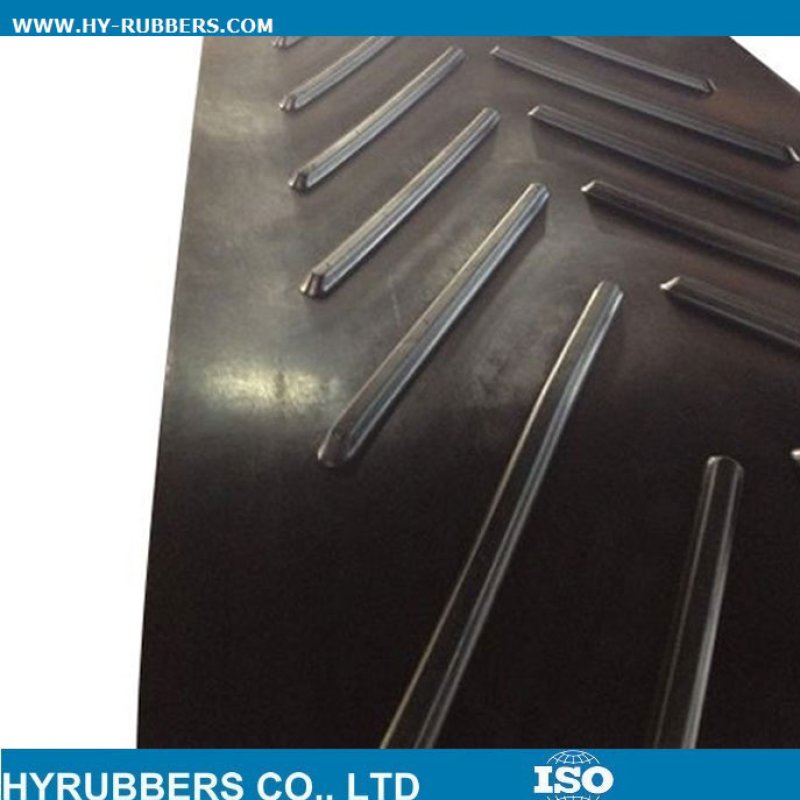

1. Shape and characteristics On surface of the belt there is chevron pattern higher than the belt body. The chevron may be either open-end or closed. Each kind of pattern includes three types of high, medium and low.
2. It can convey powdered, granulated and small lump materials at the gradient of no more than400.It can also convey packaged materials

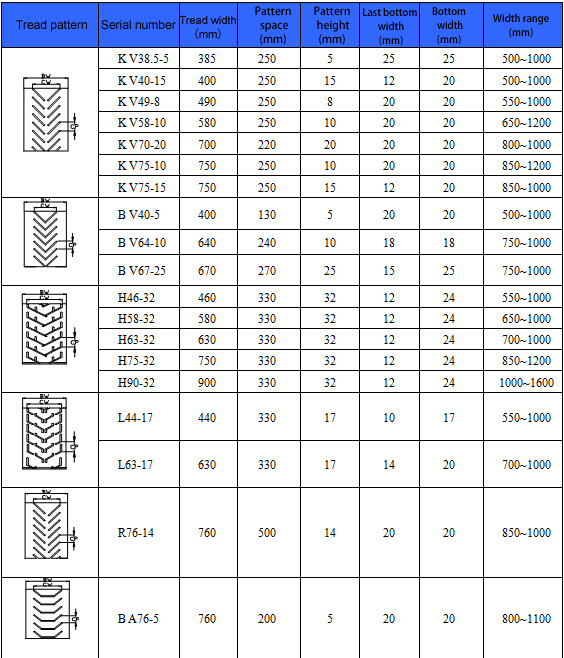

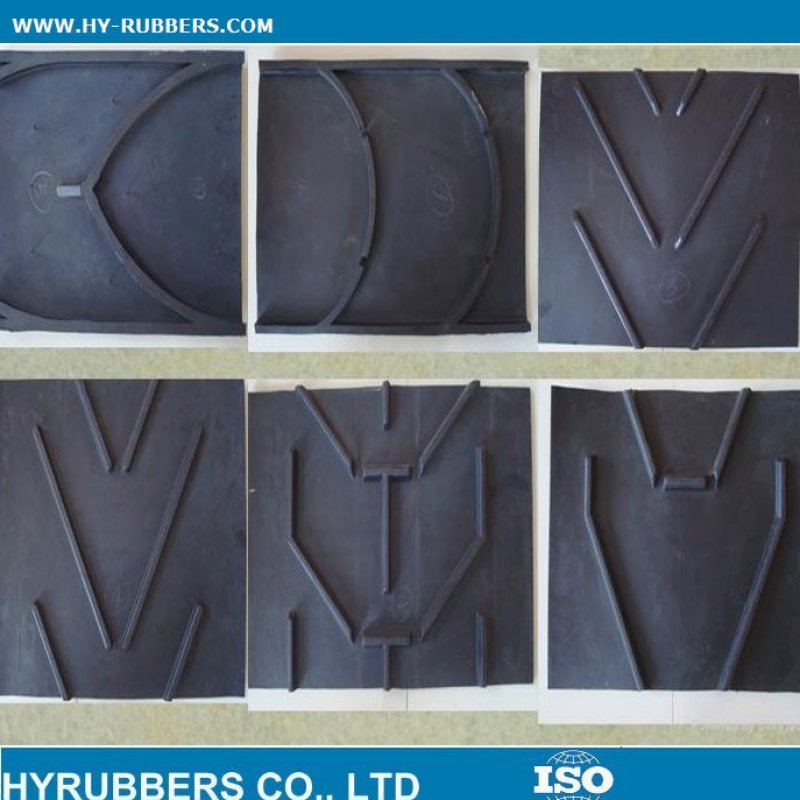

Chevron shape, cleat shape, U shape, herringbone shape, cylinder pattern
Width of belt: 300mm-2200mm
Height of Pattern:5,10,15,20,25,30(mm)
Pattern pitch:125,200,250,330,400,500(mm)
V type, U type, Y type, cleat type cylinder pattern etc could be offered to meet your demands on chevron conveyor belt.
We have full sets of test equipments to finish heat test, flame test, cold test, ozone test, tensile strength, adhesion strength etc. And the professional test report could be shared with you.
The length per roll could be 250m or 300m as your request. And the max width could be 2000mm.
We have improved departments to work together completing your project smoothfully and high efficiency.
Why you choose us?
1.Super high quality.
2.Competitive price.
3.Good producing equipment and technology.
4.Large production ability.
5.Prompt delivery.
6.Small order accepted.
7.Excelent sale and after-sale service.
8.OEM available.
Is the product sample available?
Yes,all product samples are available for you to test the quality.
Is OEM available?
Yes,OEM is available.We have professional designer to help your brand promotion.
Are the products tested before shipping?
Yes,all of our products were qualified before leave the factory,we test every batch every day.
Delivery details?
Within 10-20 days in general or depends on quality of the order.
Packaging details?
Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.
What's the quality guarantee?
We have totally quality guarantee to customers,we will be responsible for any quality problems.
